South-West solar installation of Luxor TopCon modules on a steep tiled roof using a Novotegra mounting system (side fix with clamps), Kostal G3 inverter (10kW) a Kostal full backup switch, and an Axitec battery AKA Pylontech Force H2 (6.7kWh). It was blistering hot on the of days of the installation, the black tiles did the rest… The roof installation took us 2 days with a total of 6 helpers (4 on the first, 5 on the second day). Down in the basement was an older inverter cabinet, but AC SPD, RCD and backup switch fit in well. Electronics was changed from from two to one meter system. Full backup worked right from the start. High five to everyone, shoutouts to Baustein Renovierungen for realizing the scaffolding on a short notice! (https://renovierung-umbau.de)

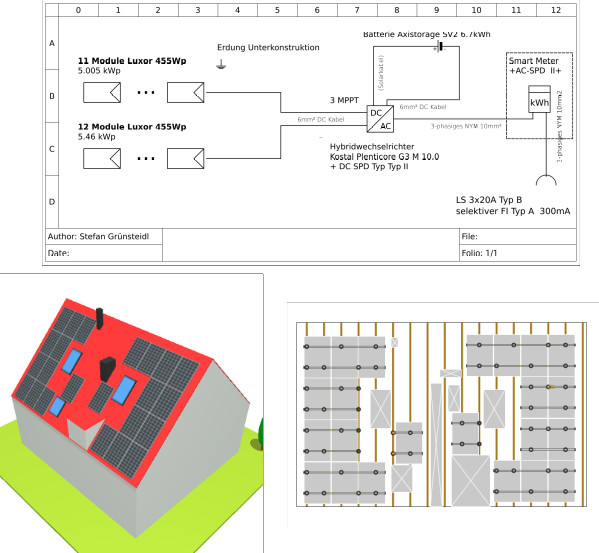

layout

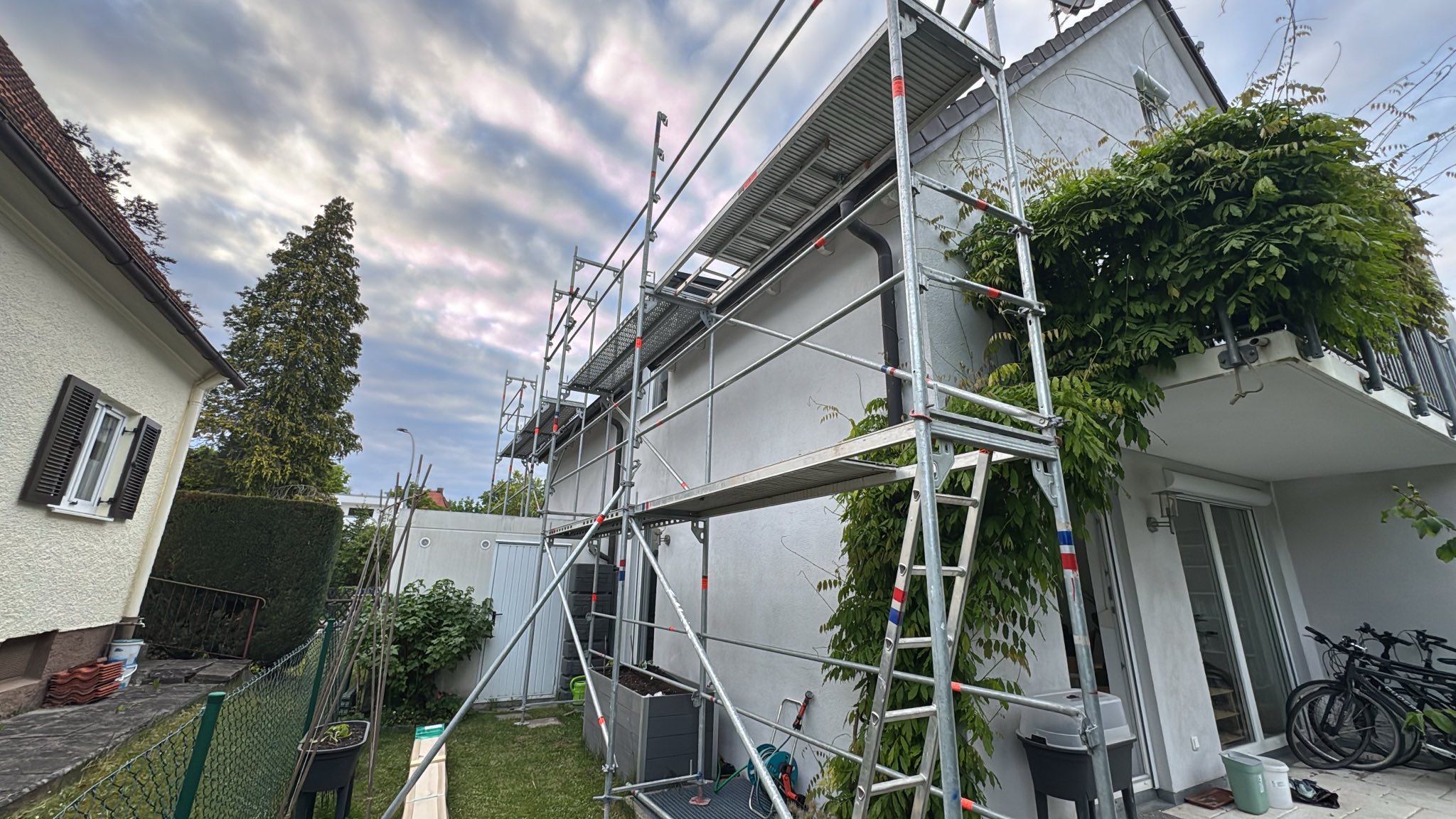

scaffolding by Baustein Renovierungen
undocumented cable duct found! (and used)

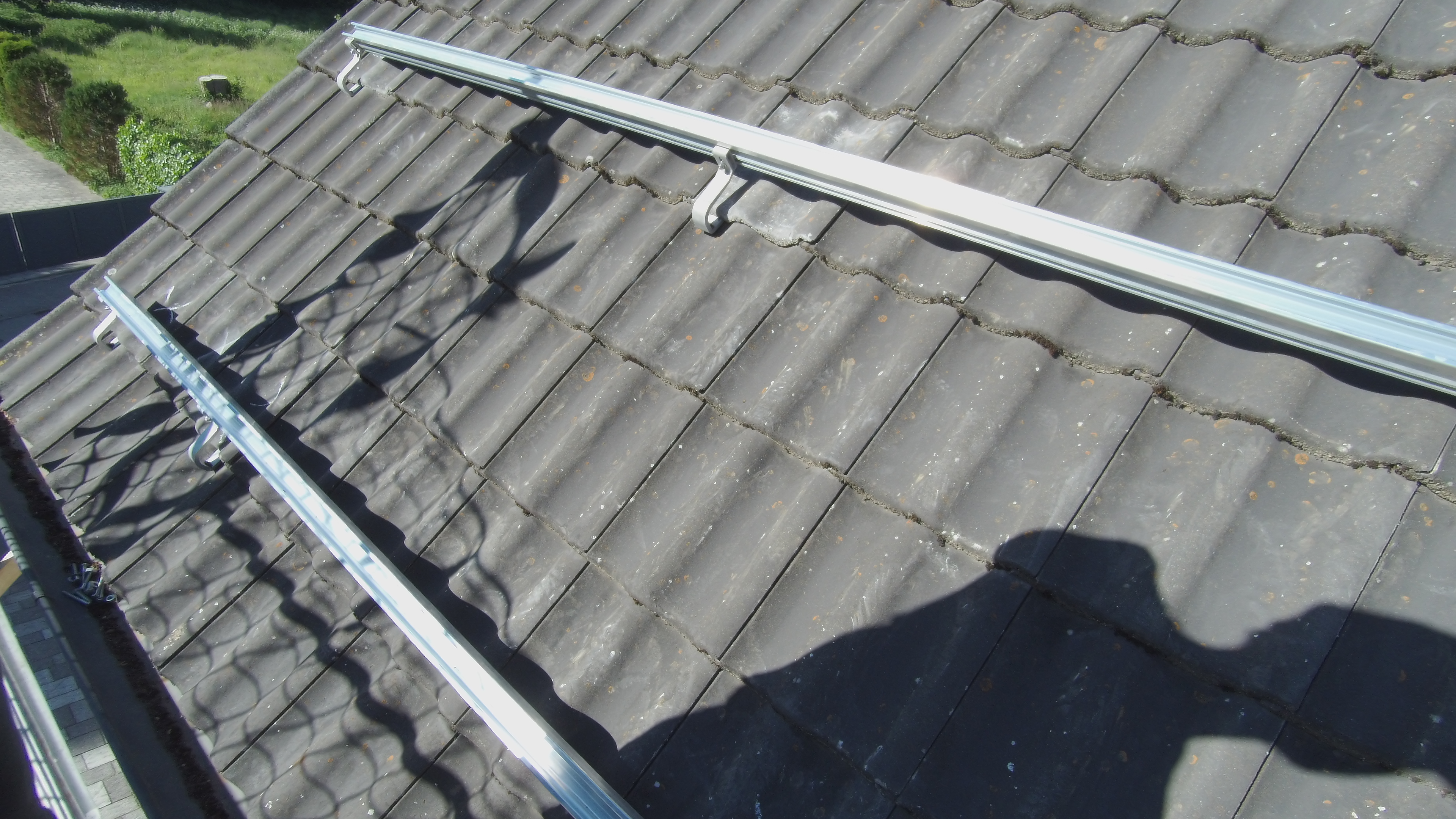

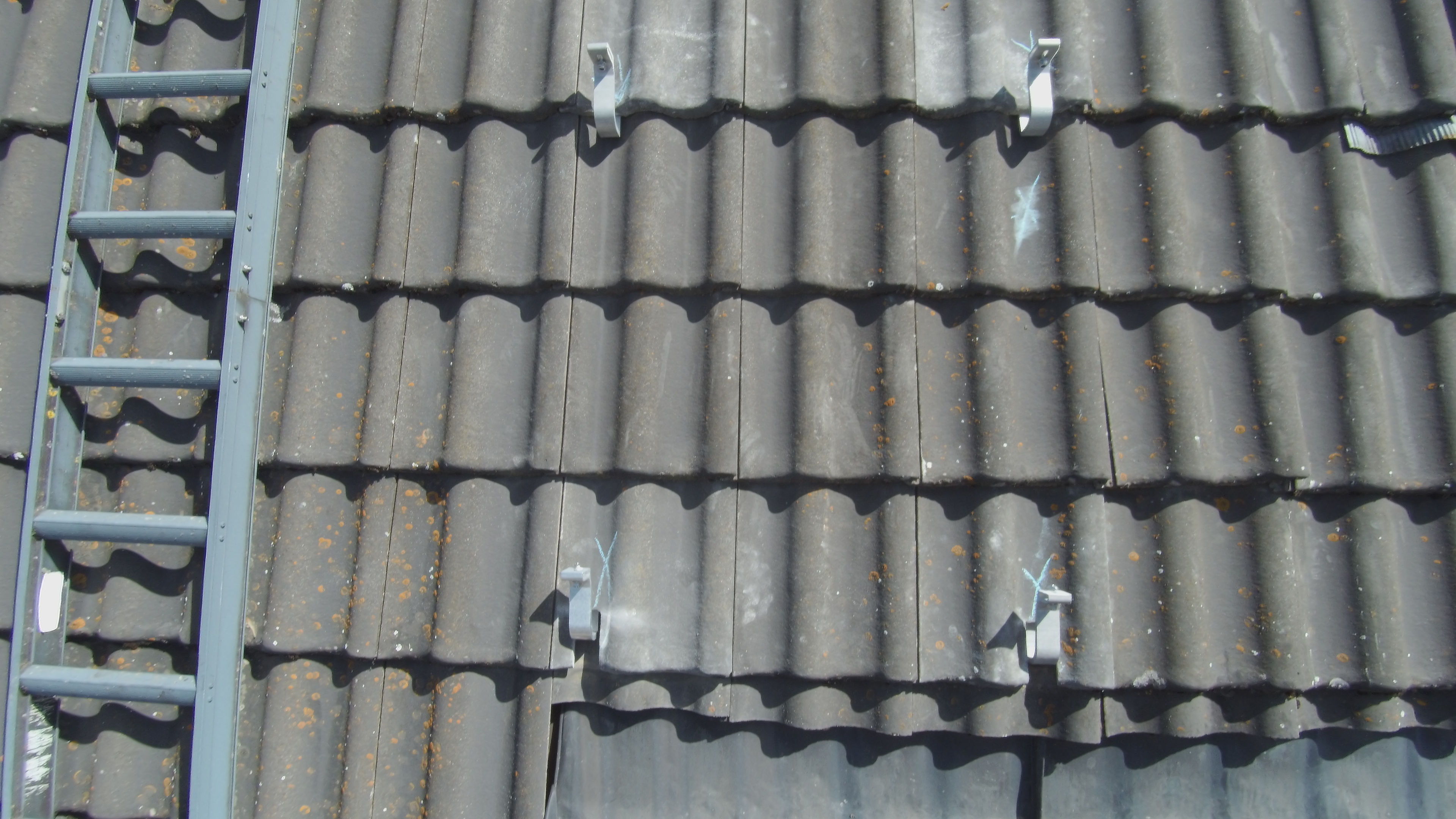

roof hooks and rails set

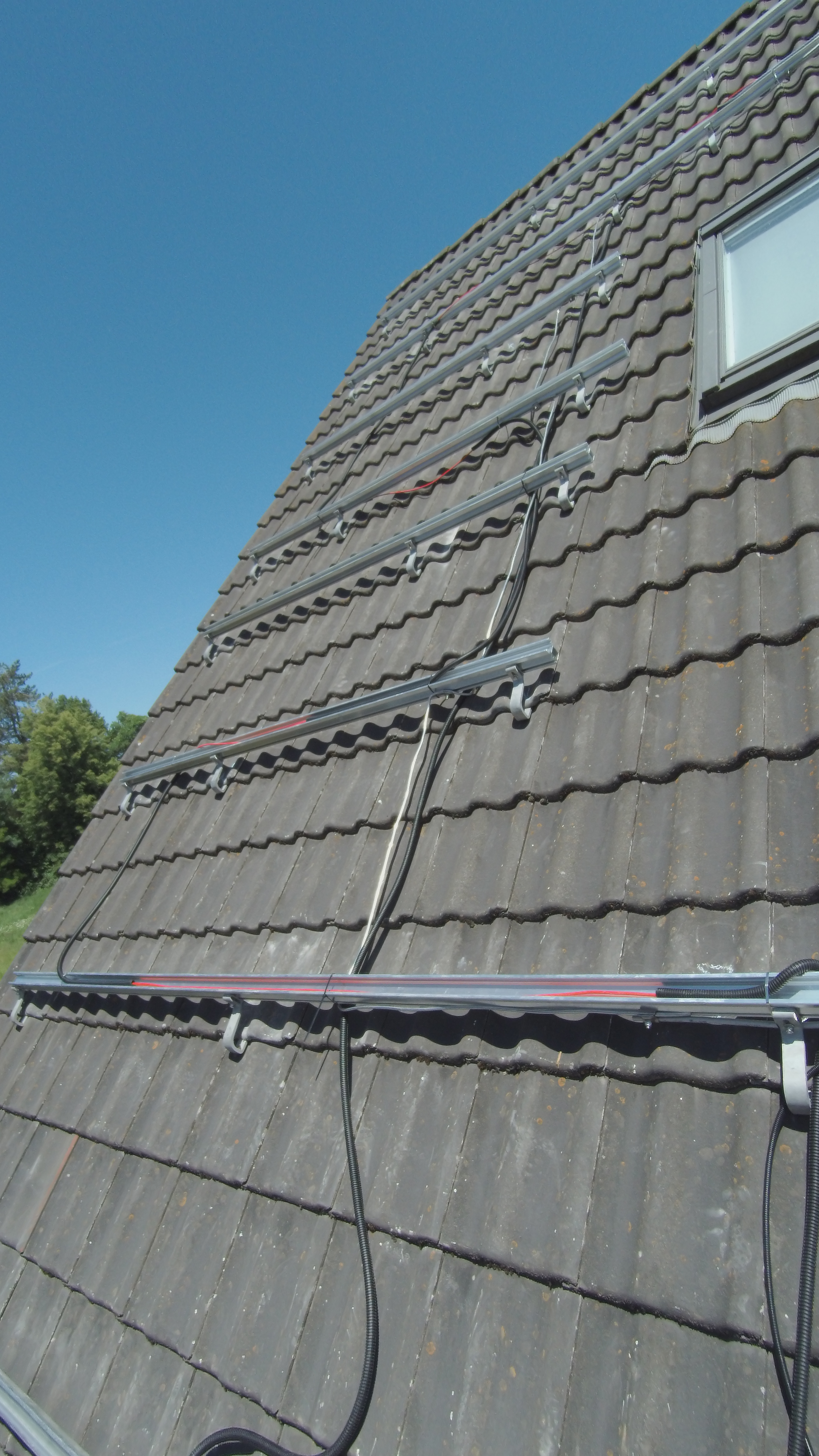

more hooks, more rails

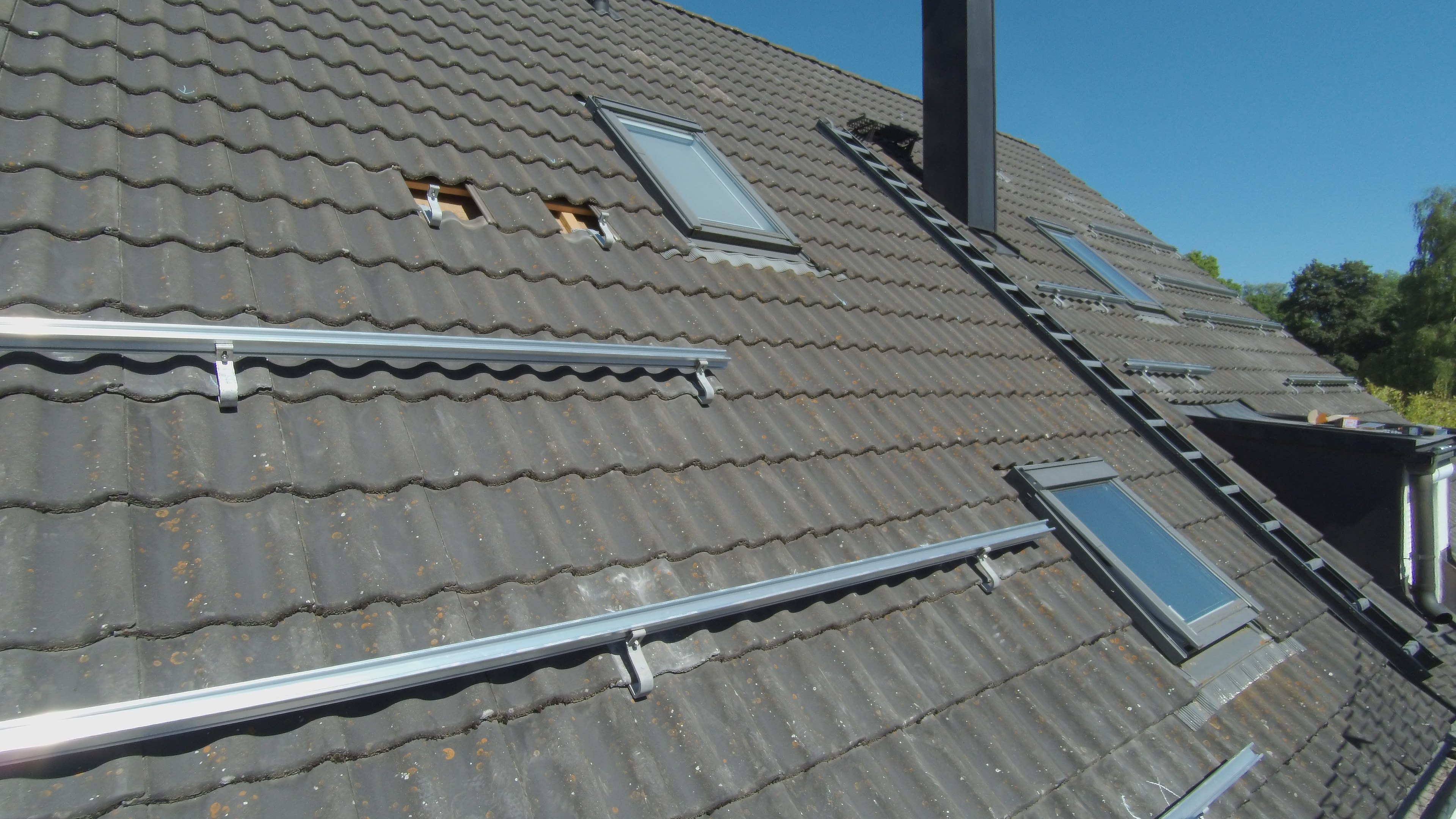

improvisation needed at this location (battens too short)

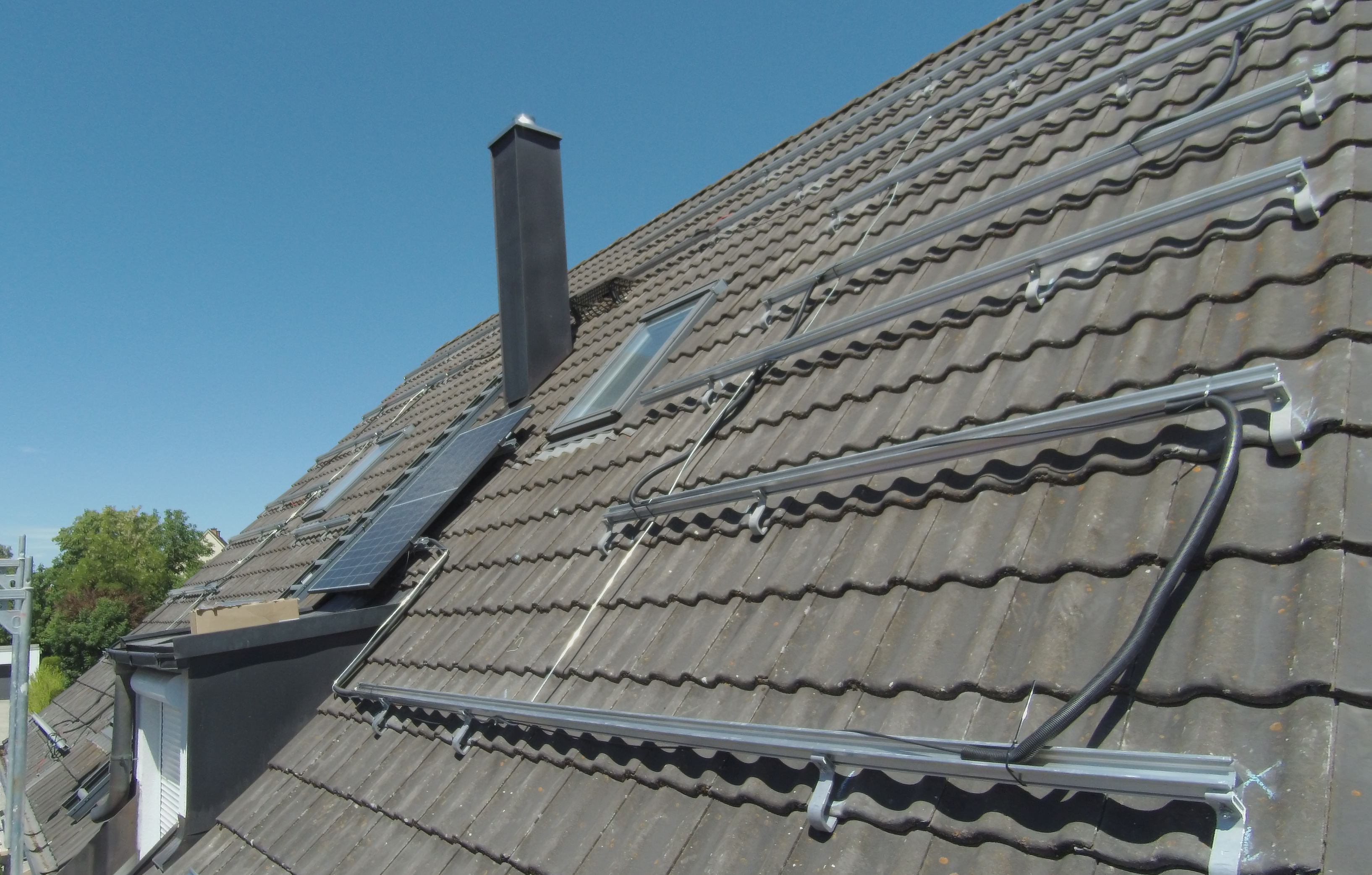

cables and grounding installed
all ready for the first module

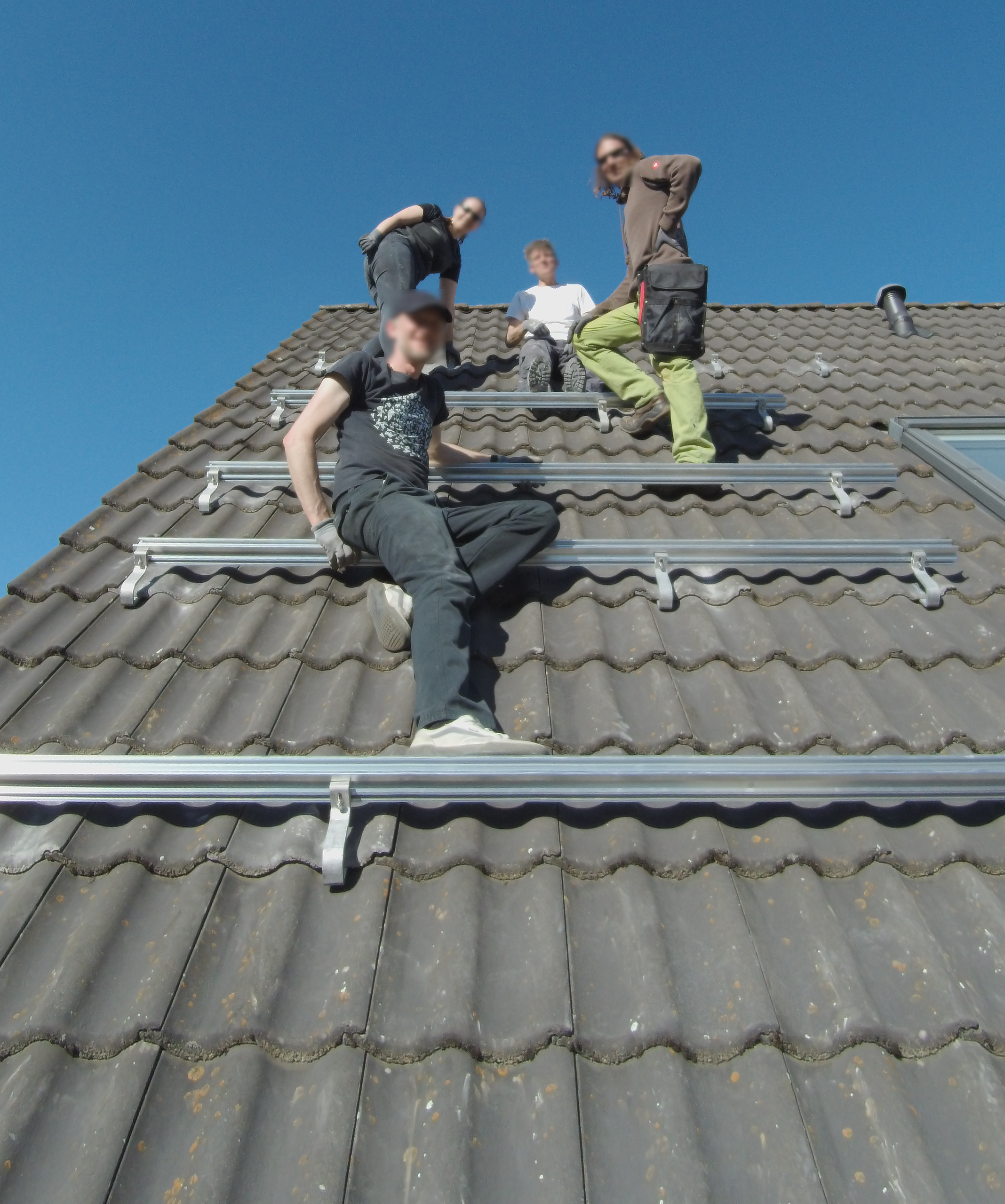

..probably my favourite picture...

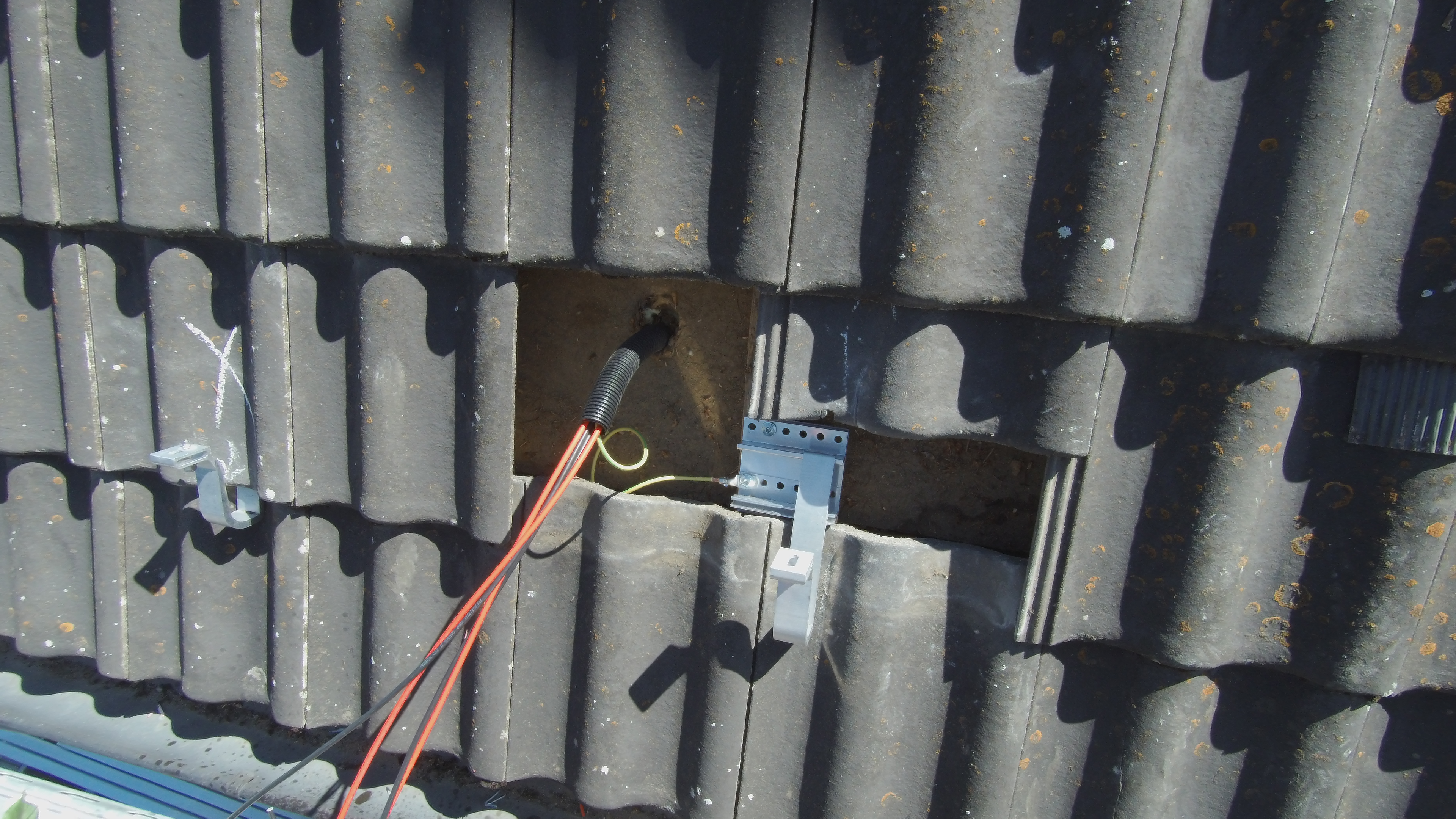

cable feedthrough, eave position for accessibility later on

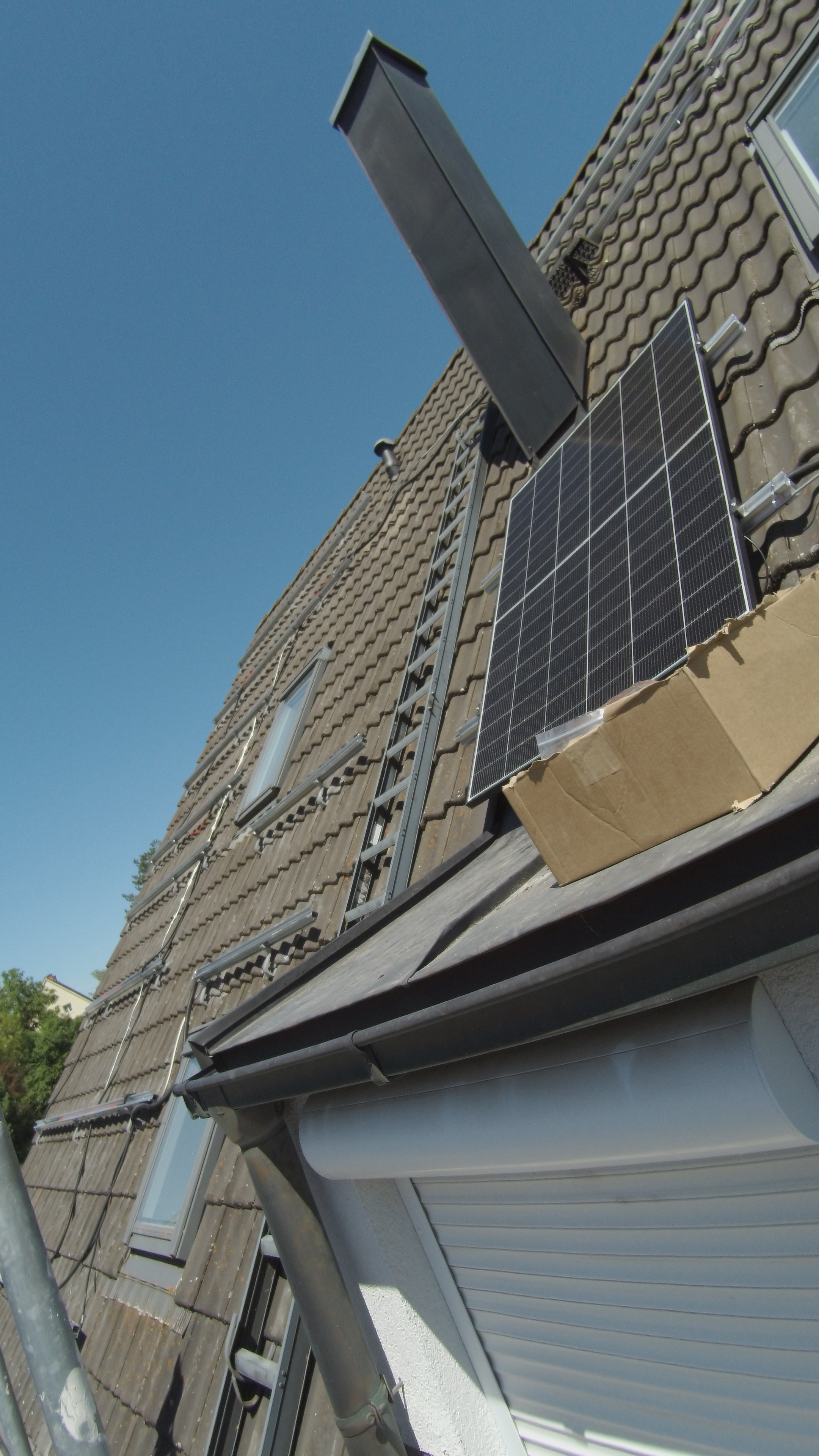

first module installed
second module, ridge position (decisive for all others)

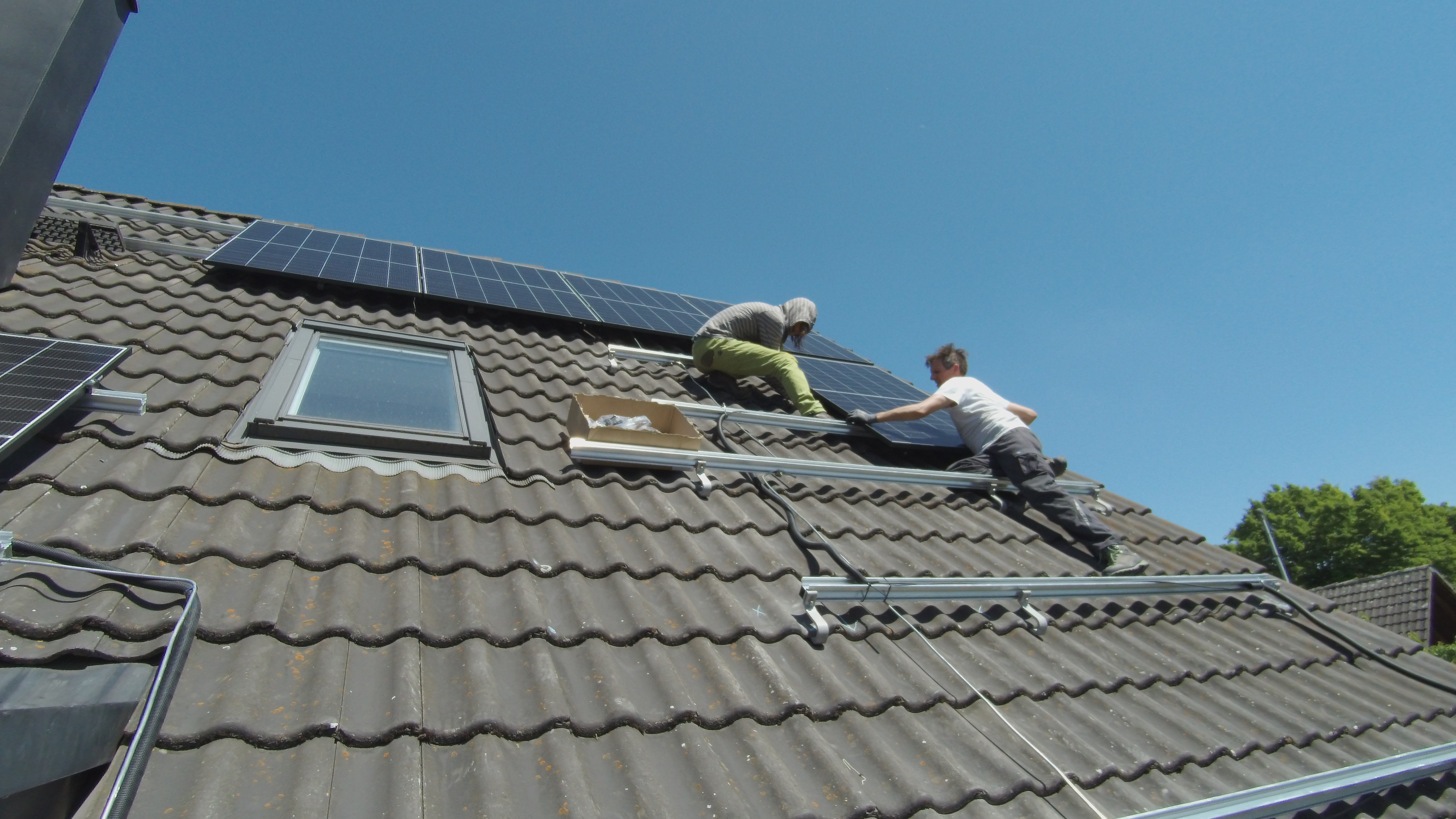

sixth module

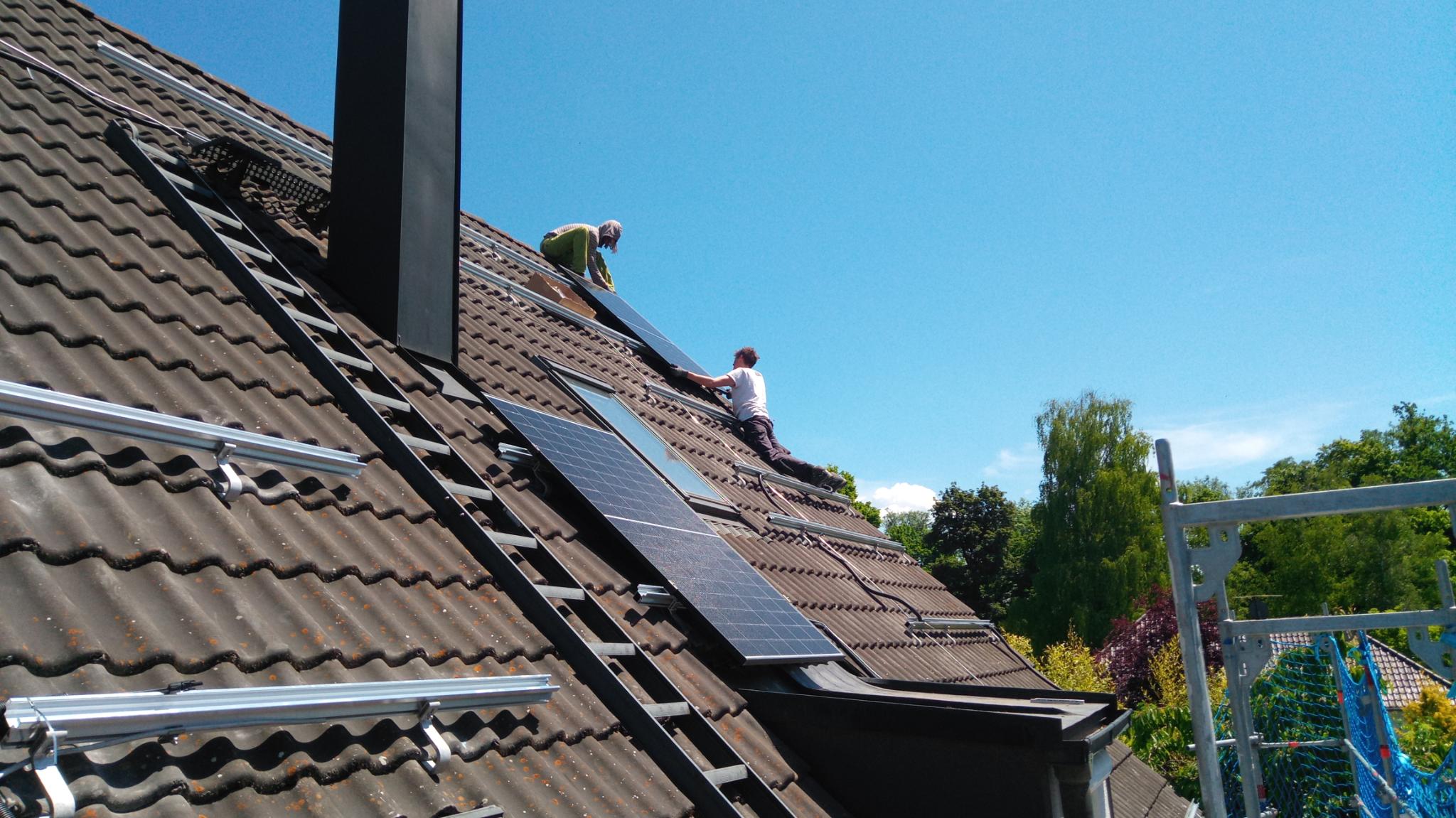

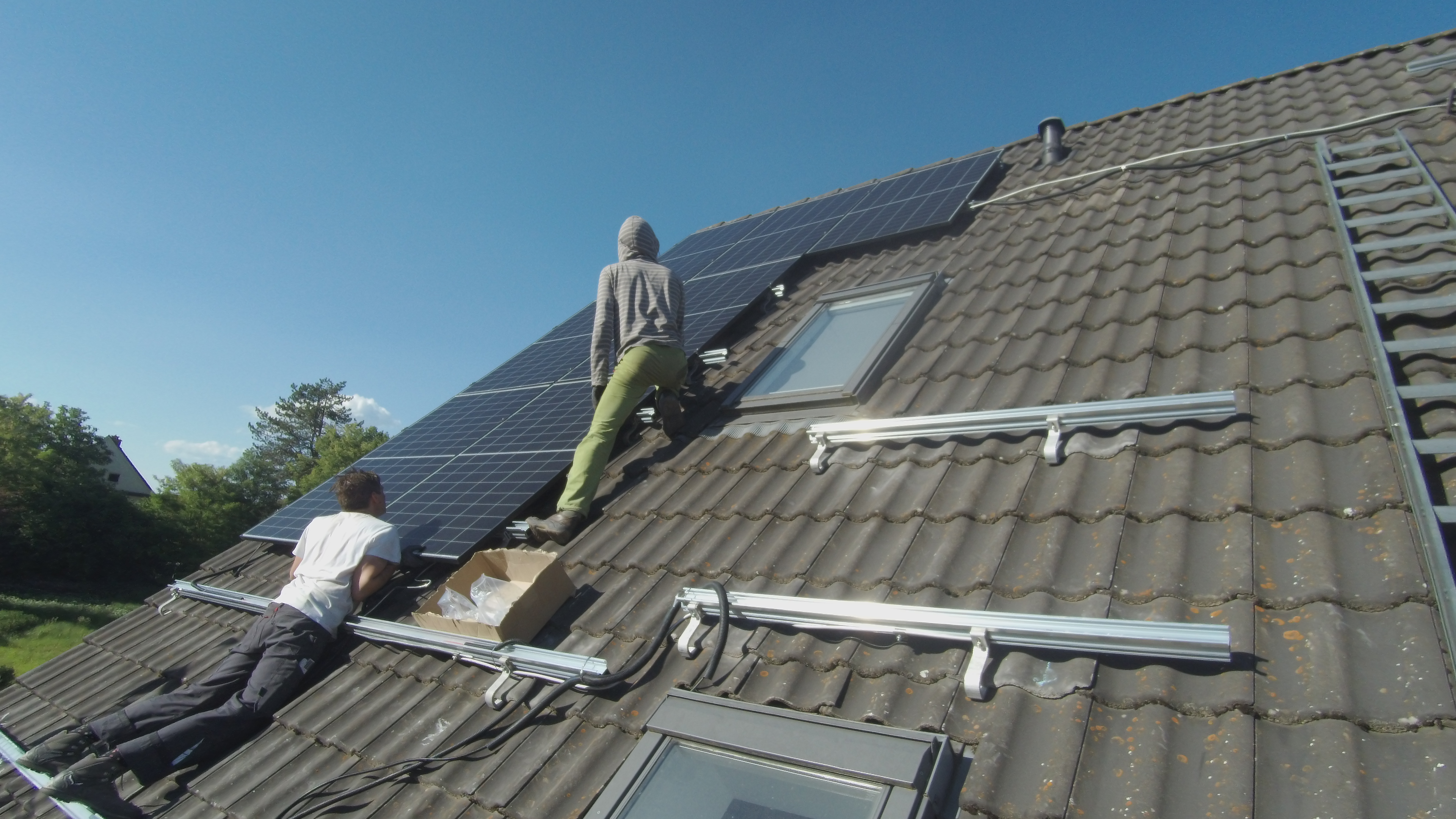

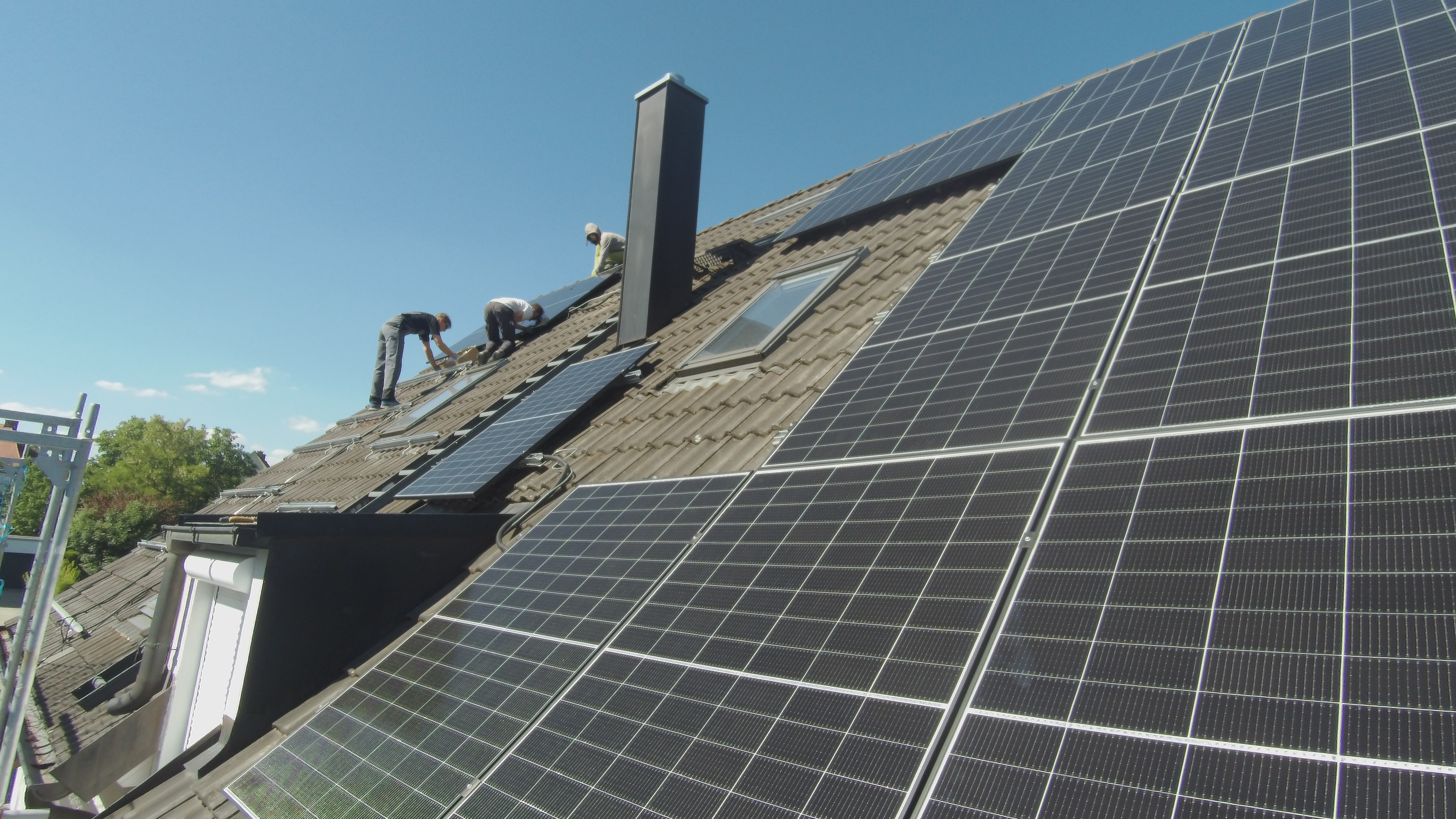

yet another module, Northern rows, blistering hot on that day

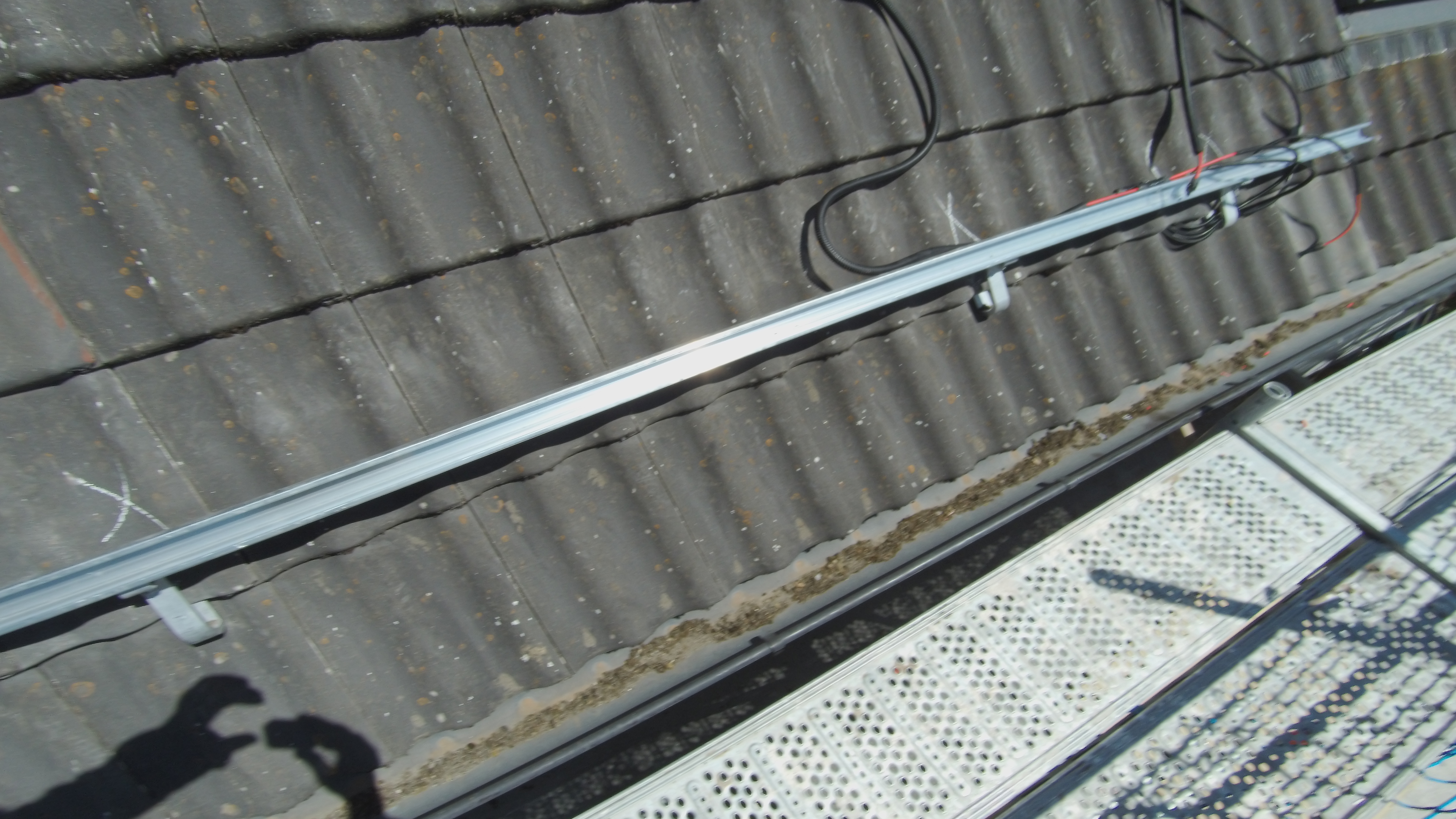

fixing some rails

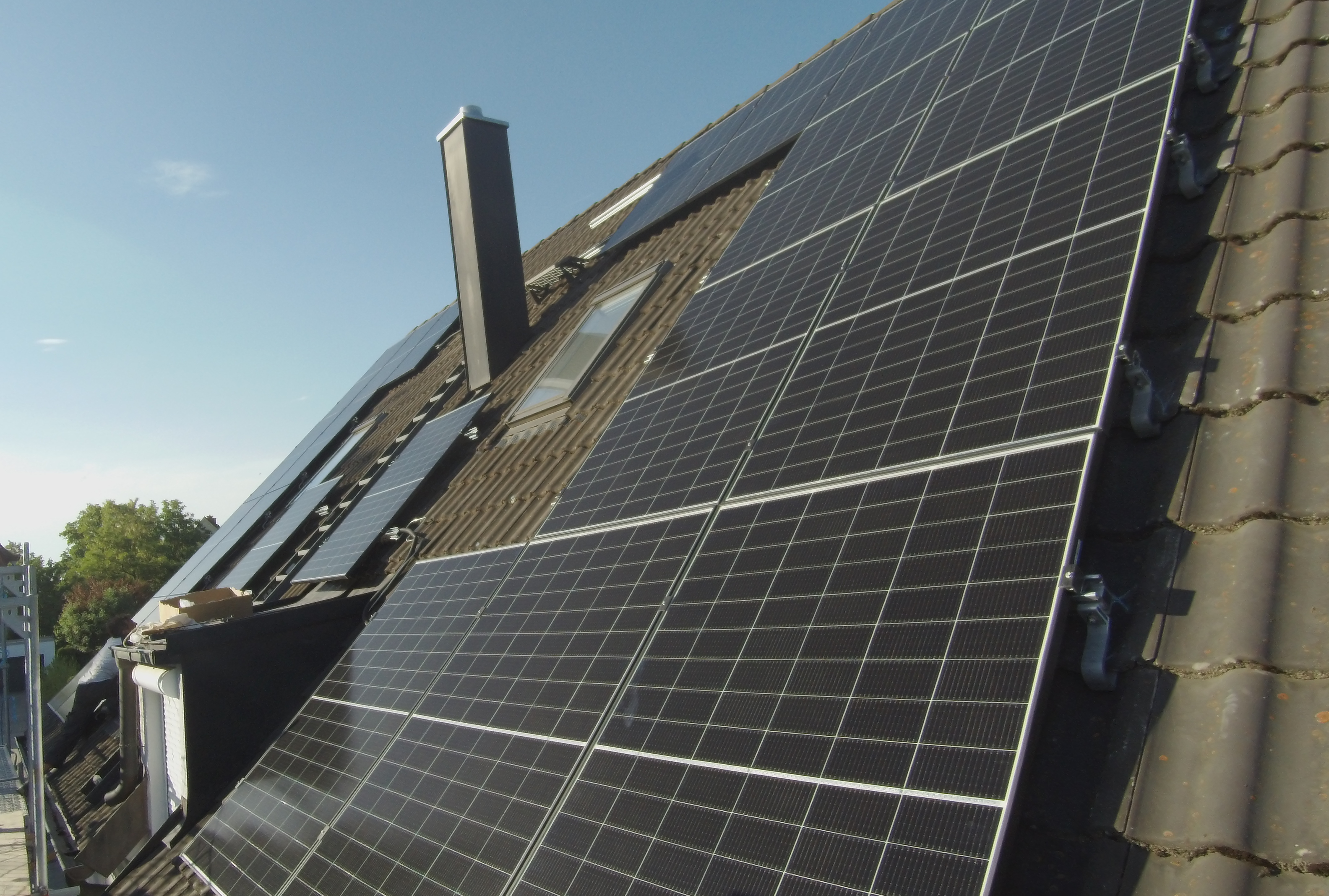

Northern half almost done

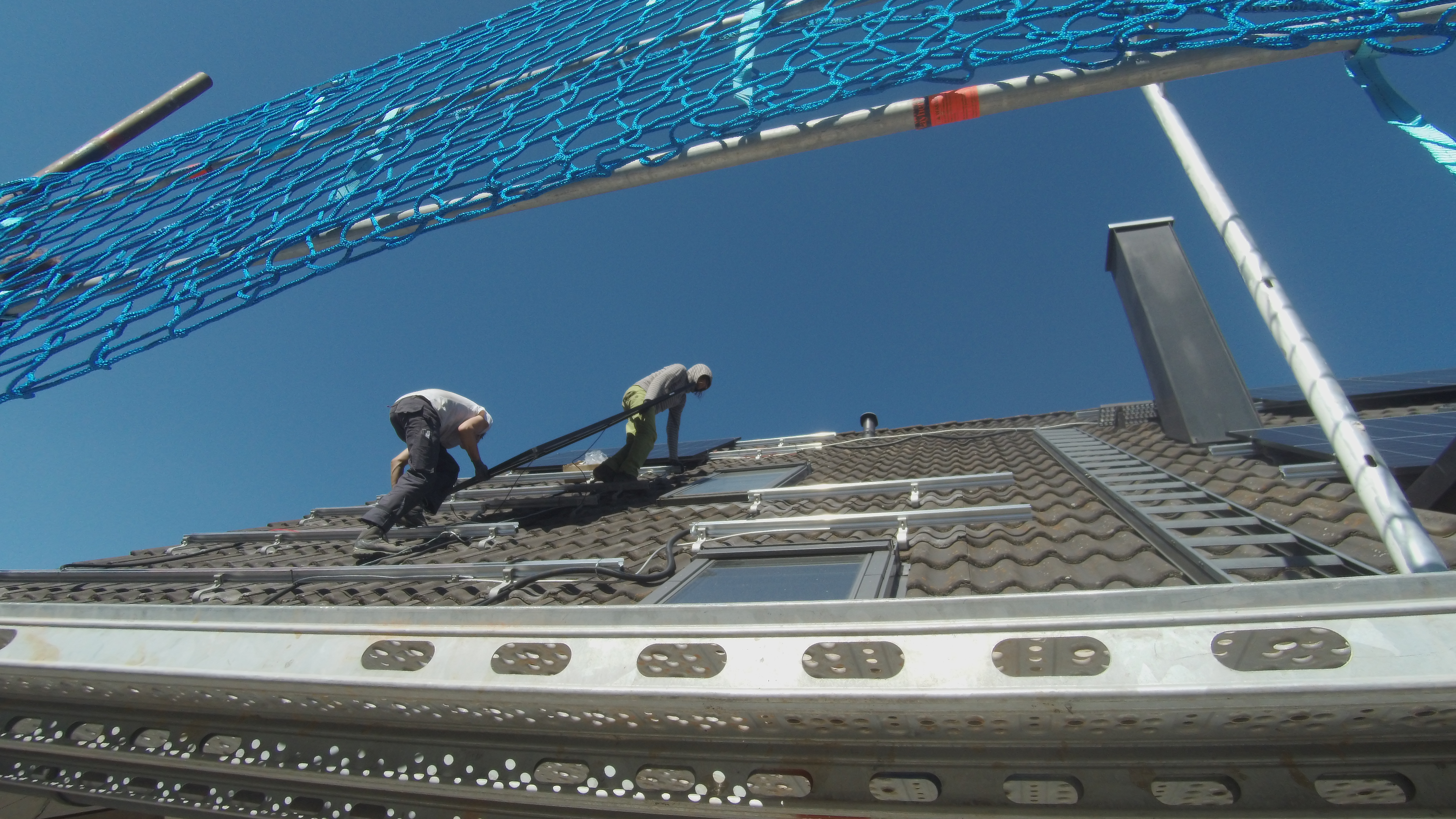

overview during the module installation

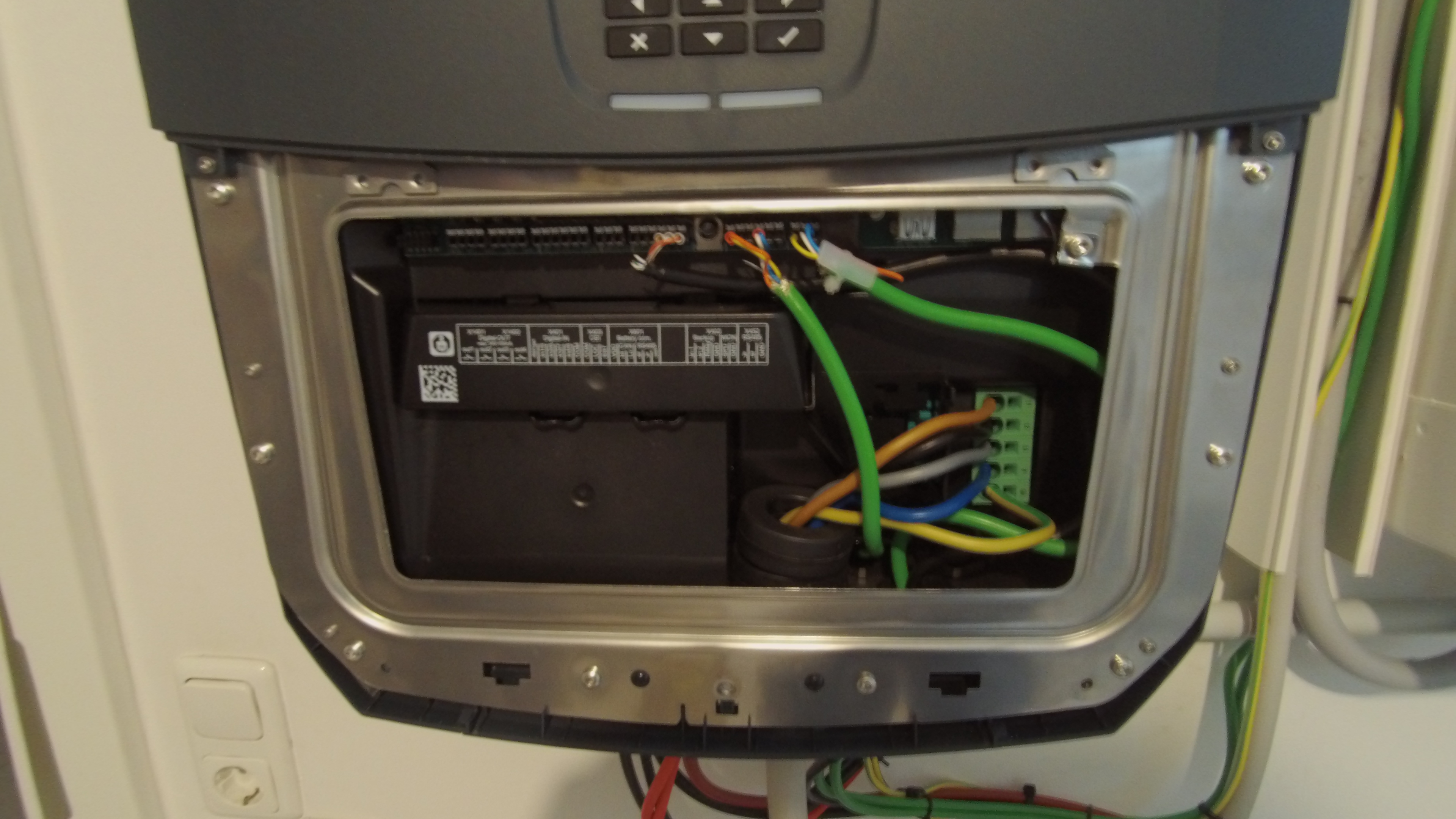

Kostal inverter, 3 data cables for battery, smart meter and backup switch

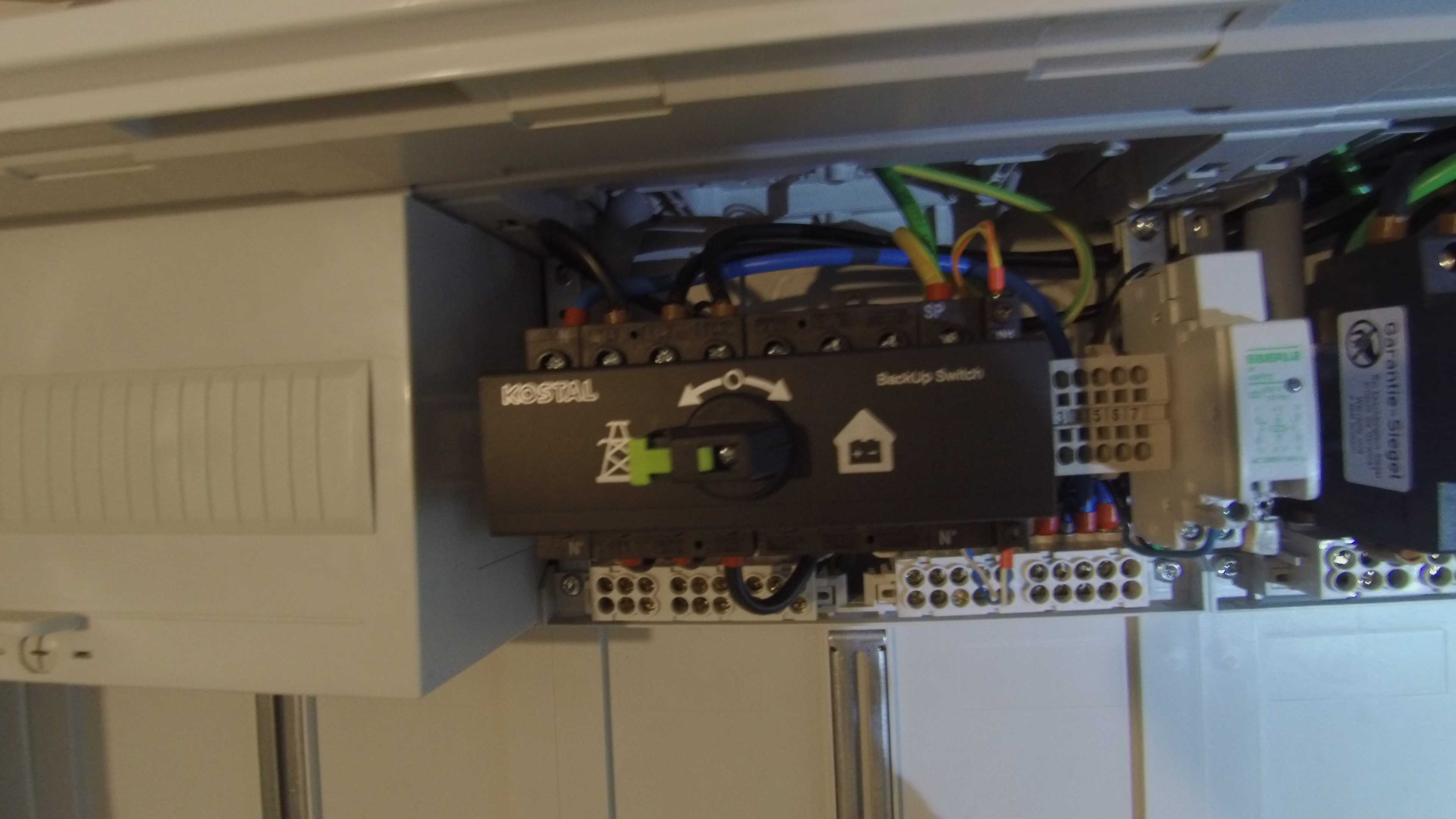

Kostal backup switch

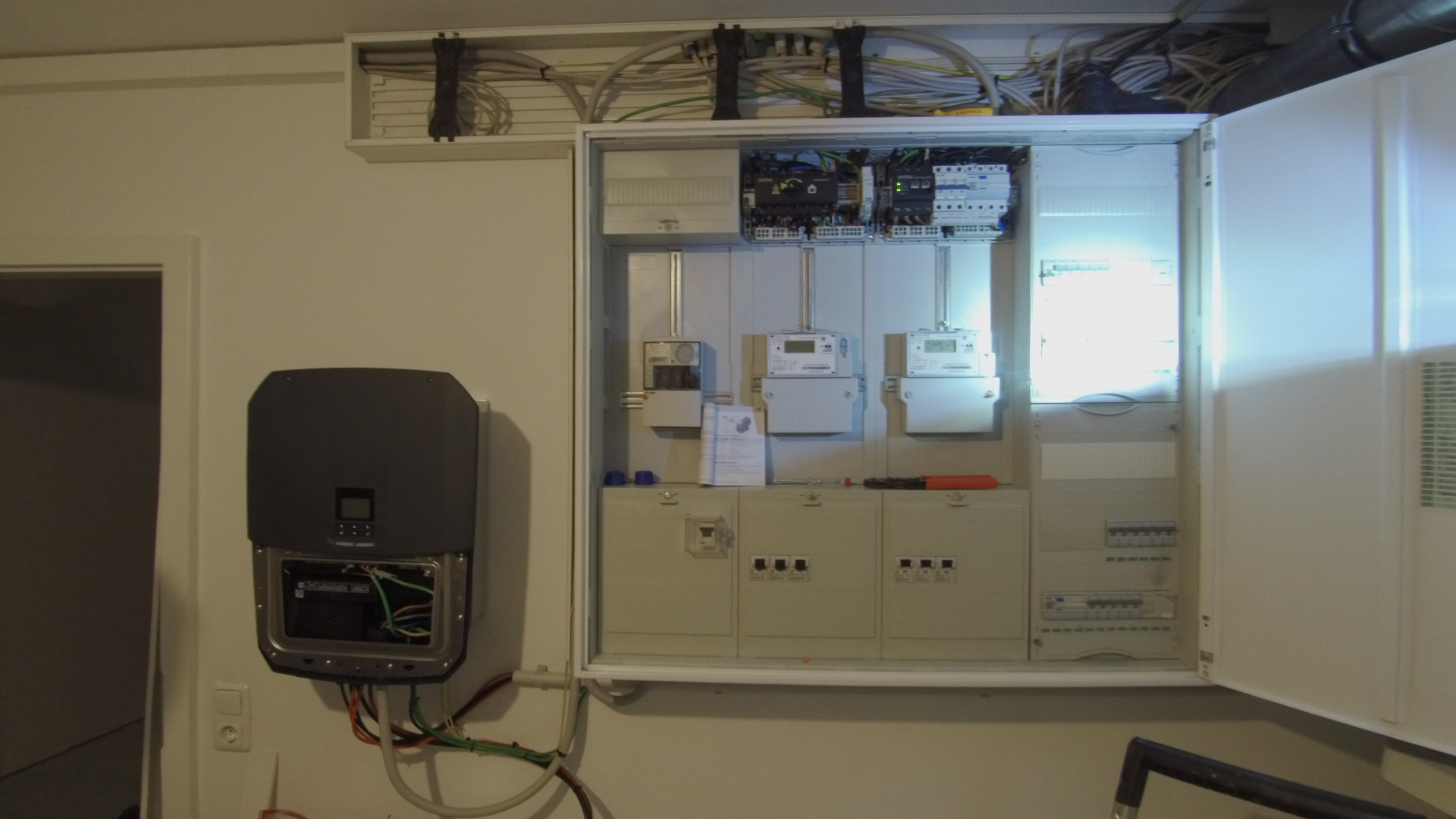

overview electric cabinet with RCD, fuses, cables, switch
