Pretty standard solar installation of Axitec TopCon modules on a steep tiled roof, using a Novotegra mounting system (side fix with clamps), Kostal G3 inverter (10kW) and Axitec battery (6.7kWh). The tiles were huge, 37 x 48cm with more than 5kg each, with lots of storm clamp attachments to them. We thought at first that we wouldn’t manage getting any work done, but it turned out all fine in the end, with lots of helpers getting the tiles off and back on to the roof for grinding hook trenches (no dust on the roof surface). The complete roof was done in 2 days with a total of 7 people (..maybe 3 working simultaneously..). Quite some modifications to the electrical cabinet needed, from parallel to a cascaded measurement concept. Worked all fine in the end, thanks to everyone helping with the installation!

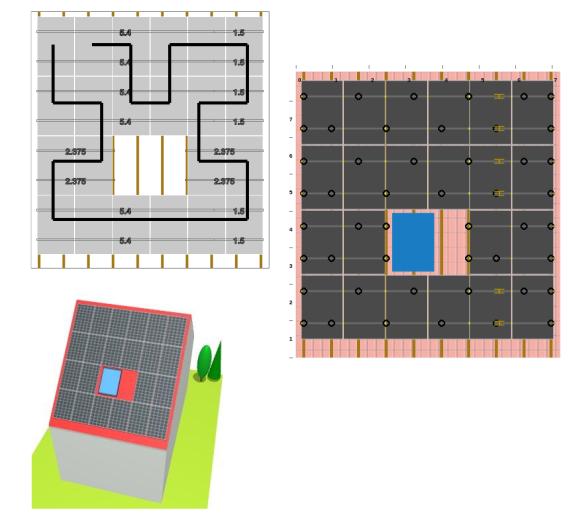

layout

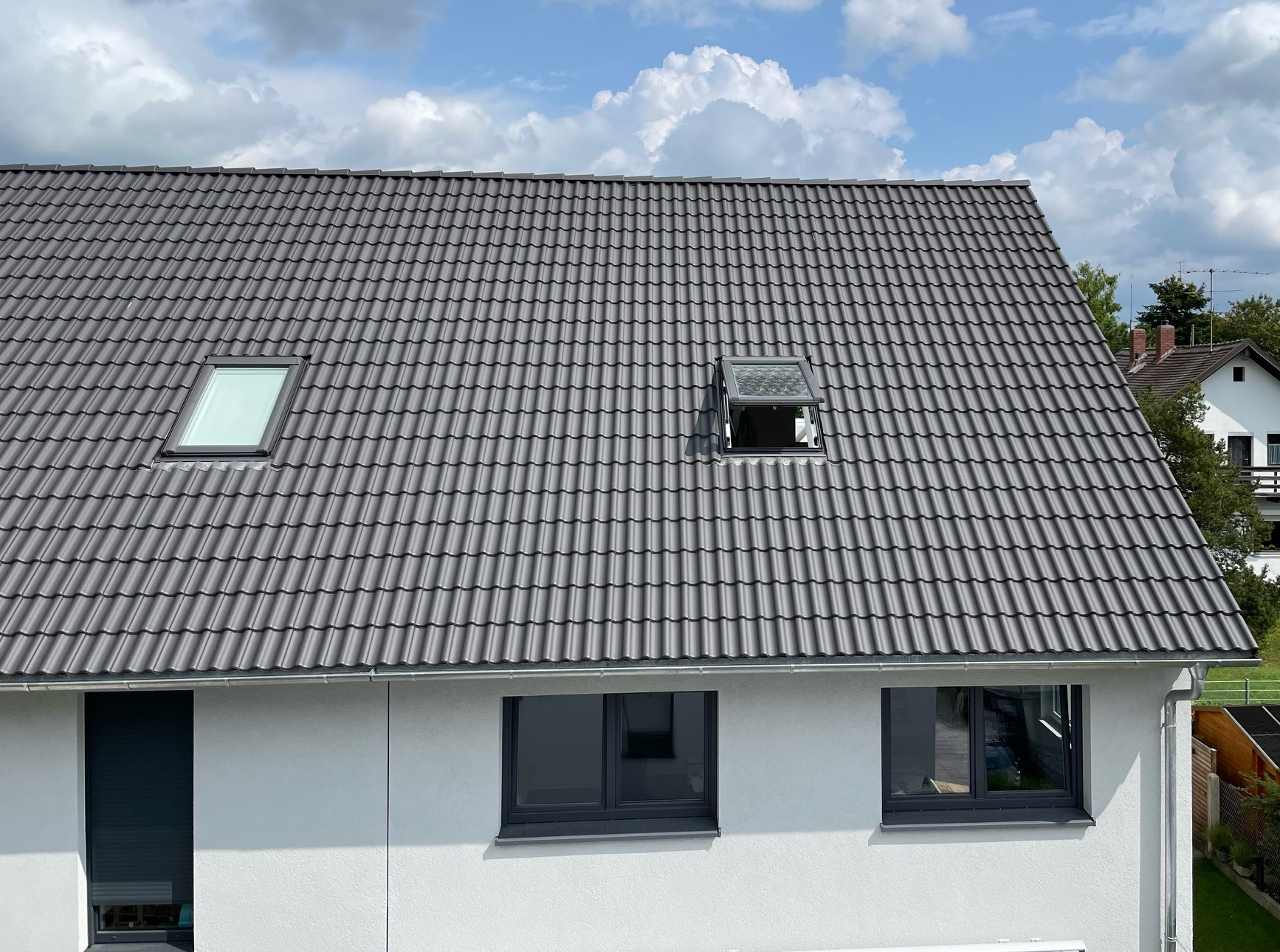

roof before installation

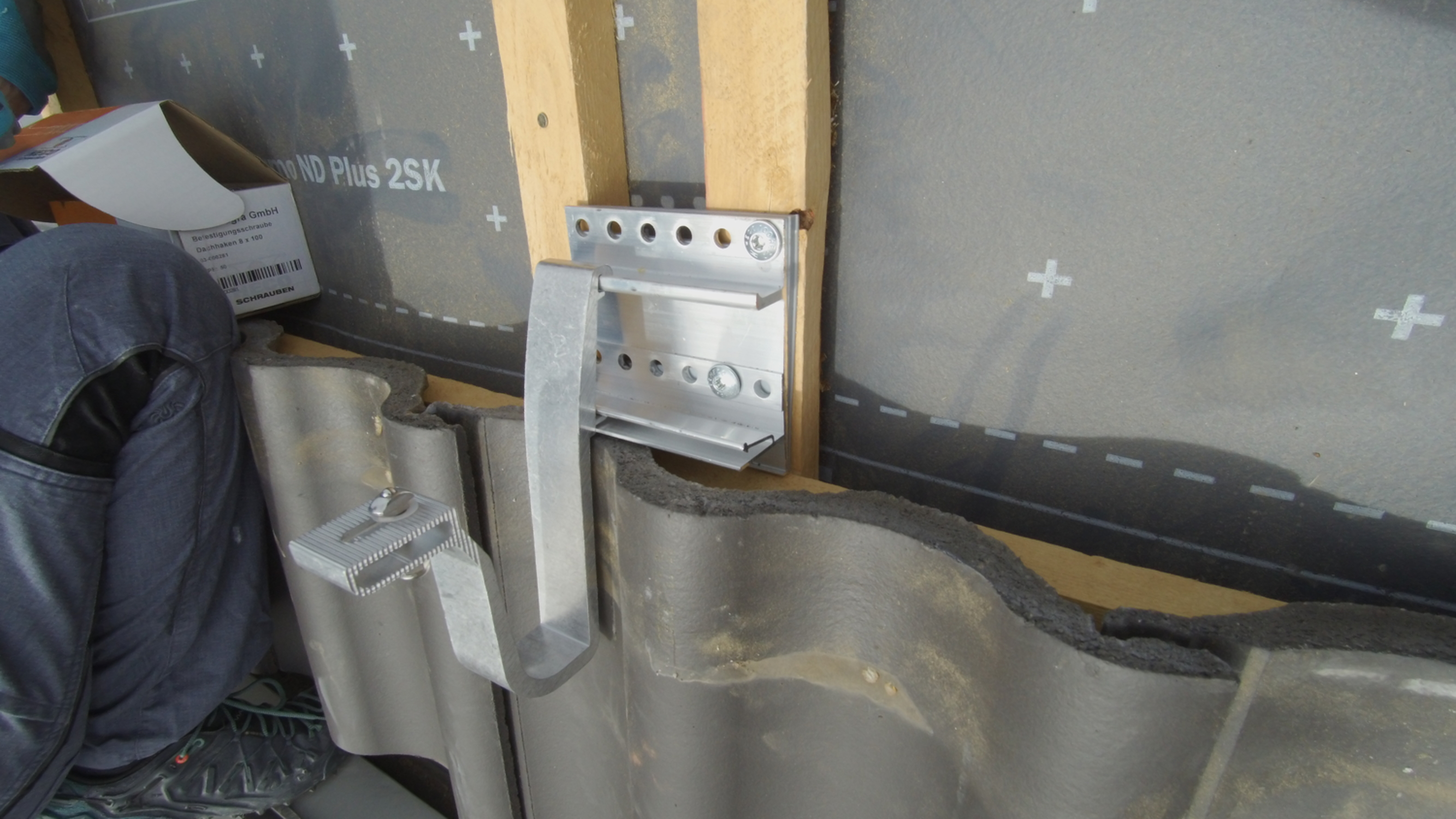

first roof hook set (..it took a while..)
first set of rails put in place
grounding

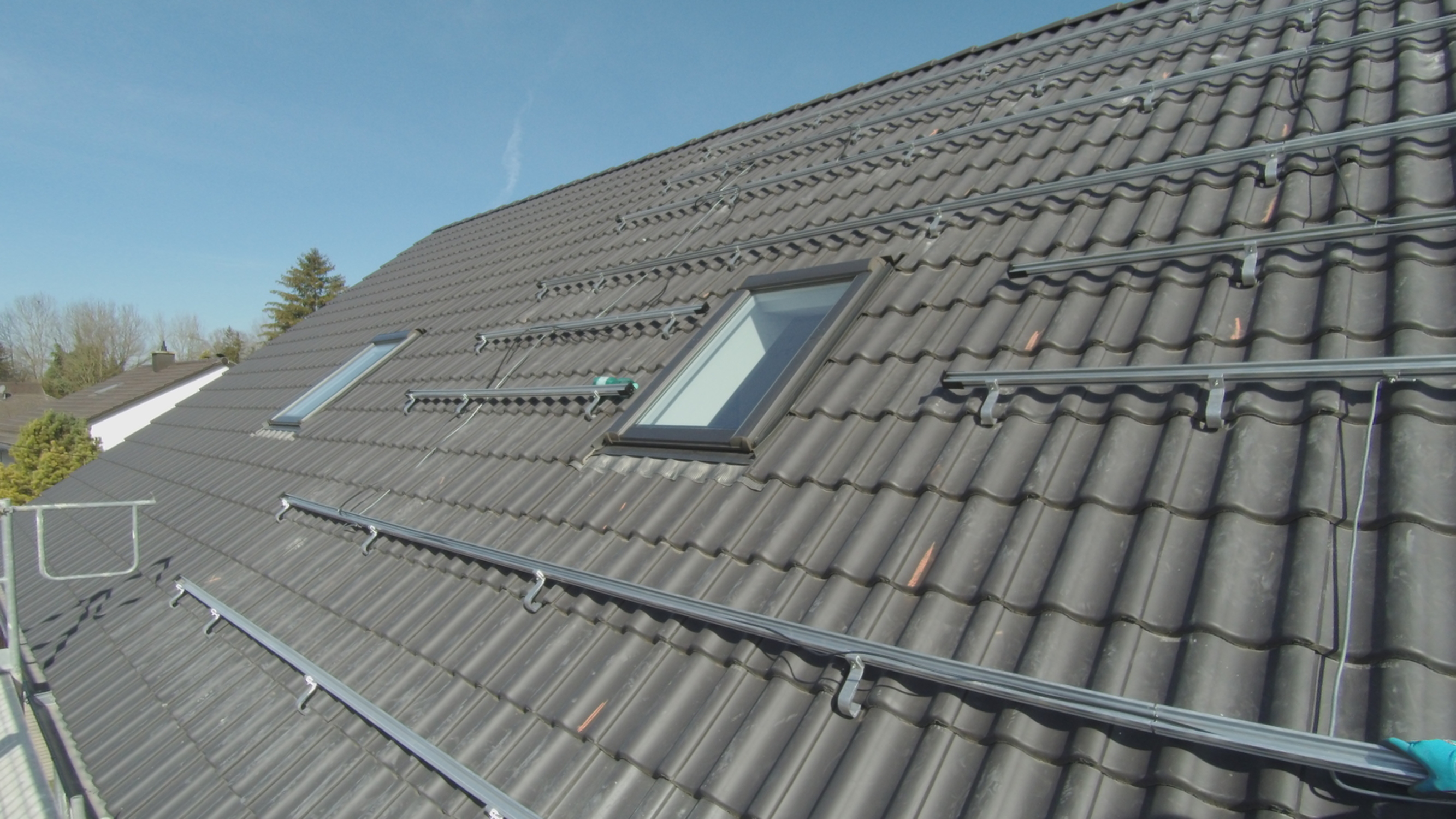

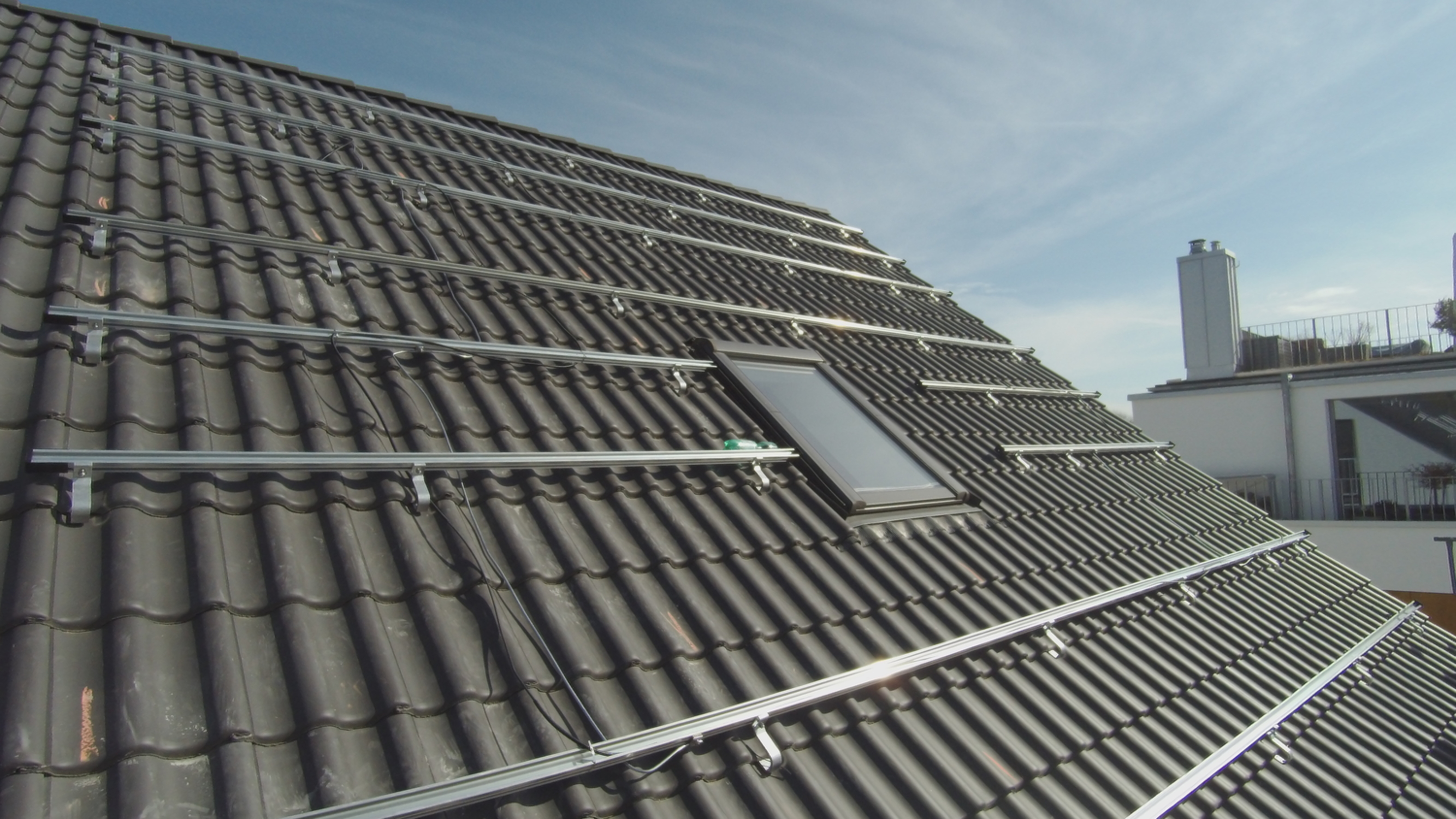

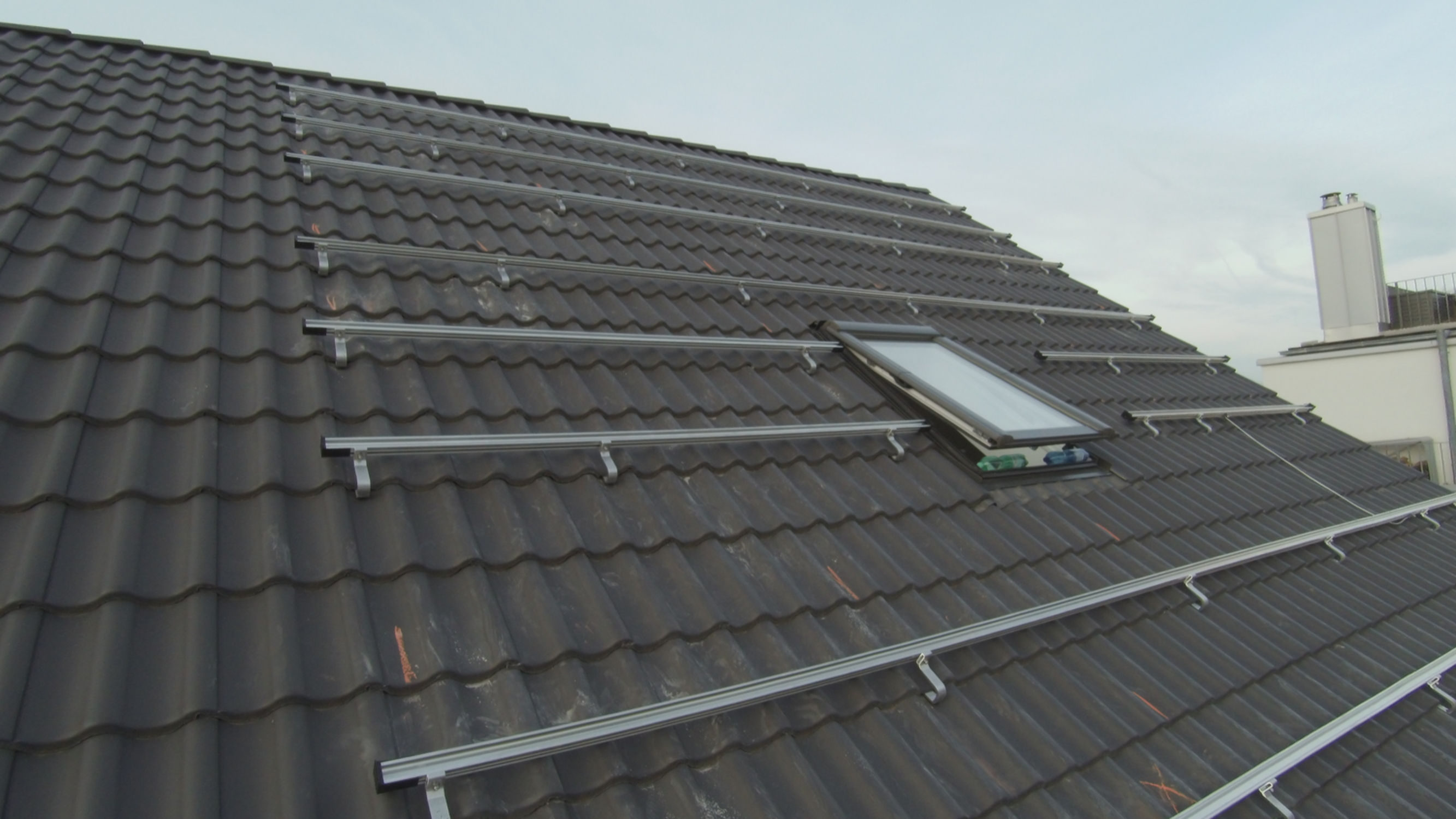

all rails set

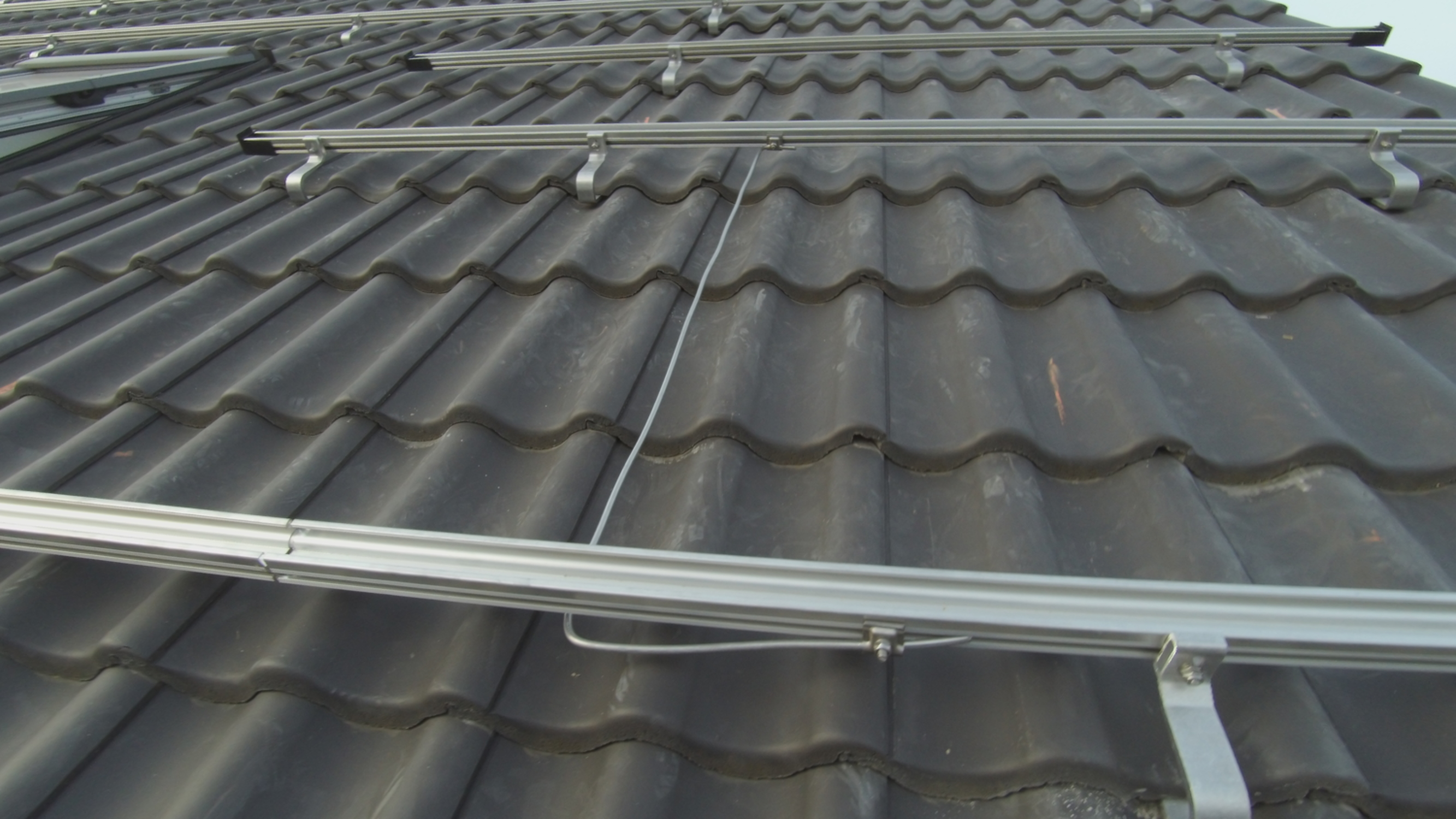

return cable for avoiding cable loops

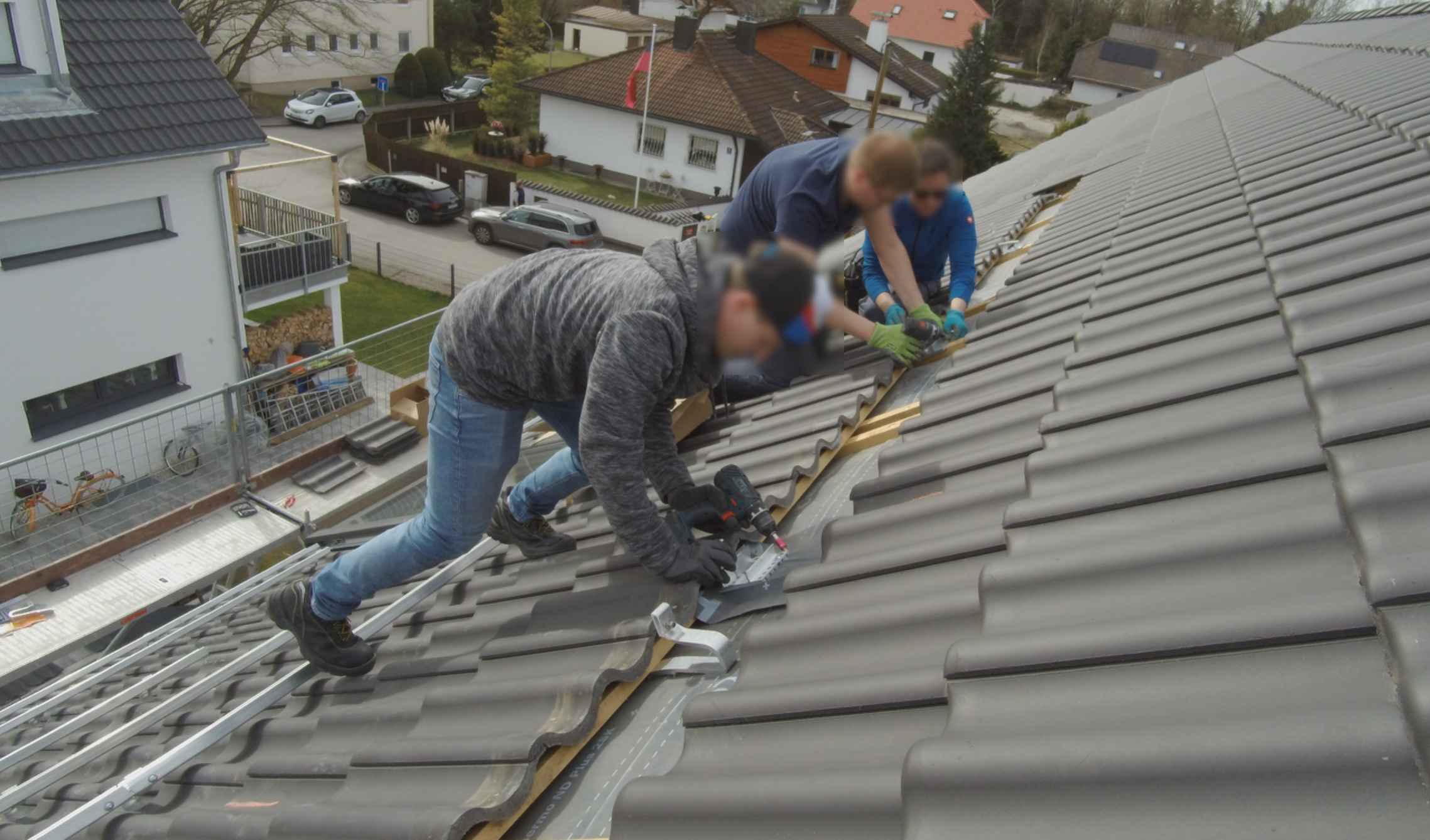

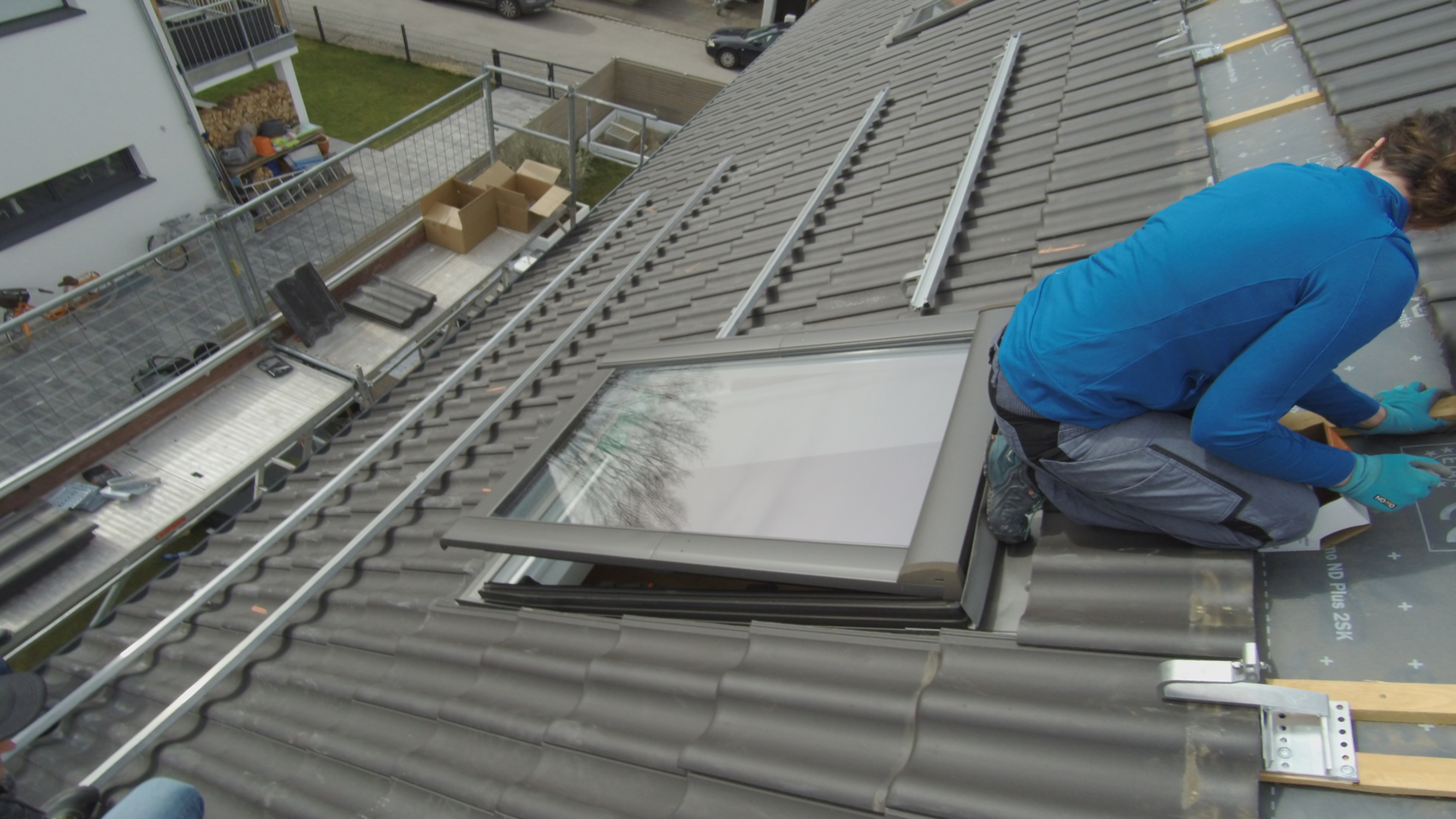

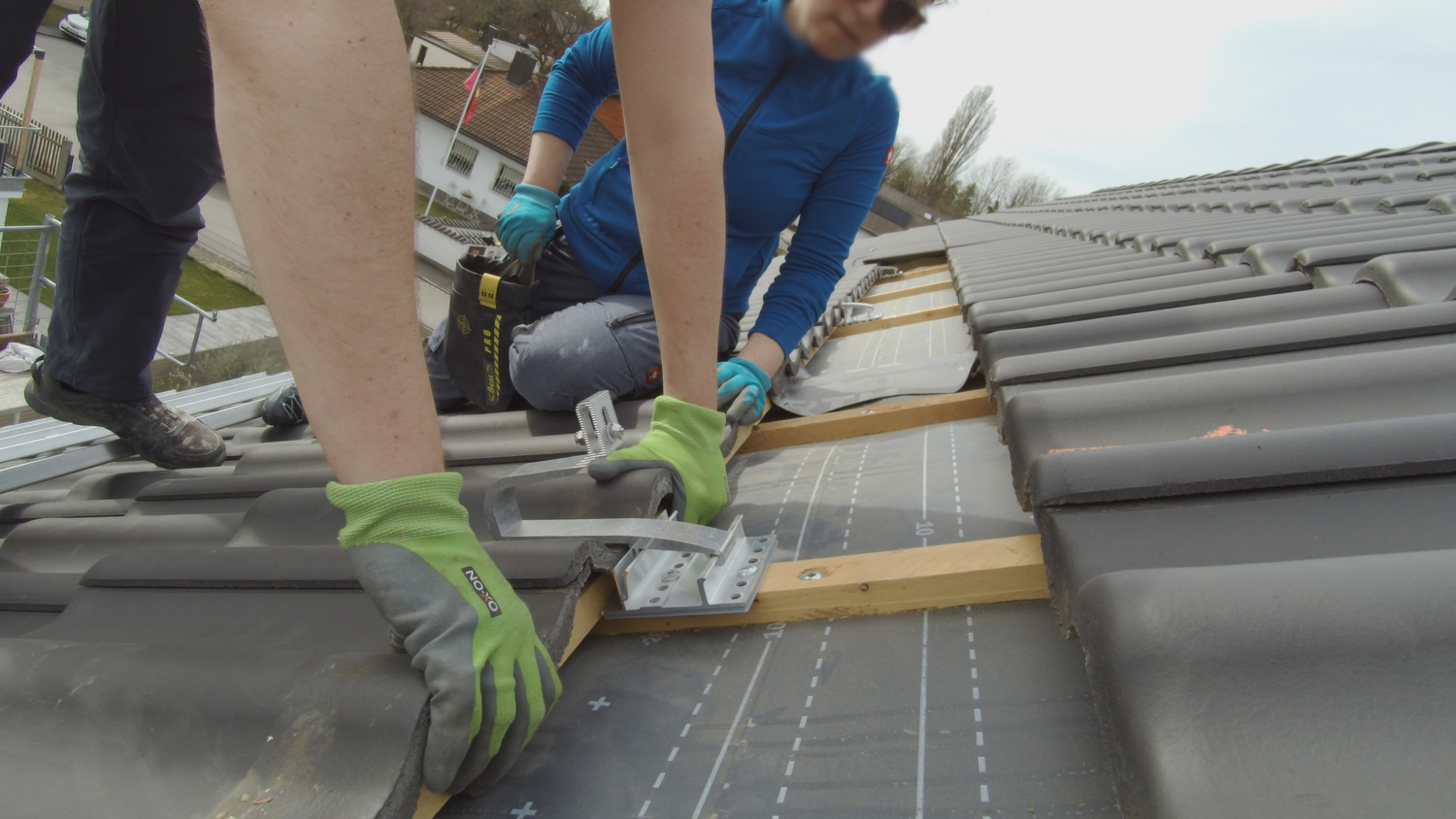

mounting roof hooks (and clearing rows of tiles)
mounting roof hooks (and clearing rows of tiles)
mounting roof hooks (and clearing rows of tiles)
everything prepared for the module installation

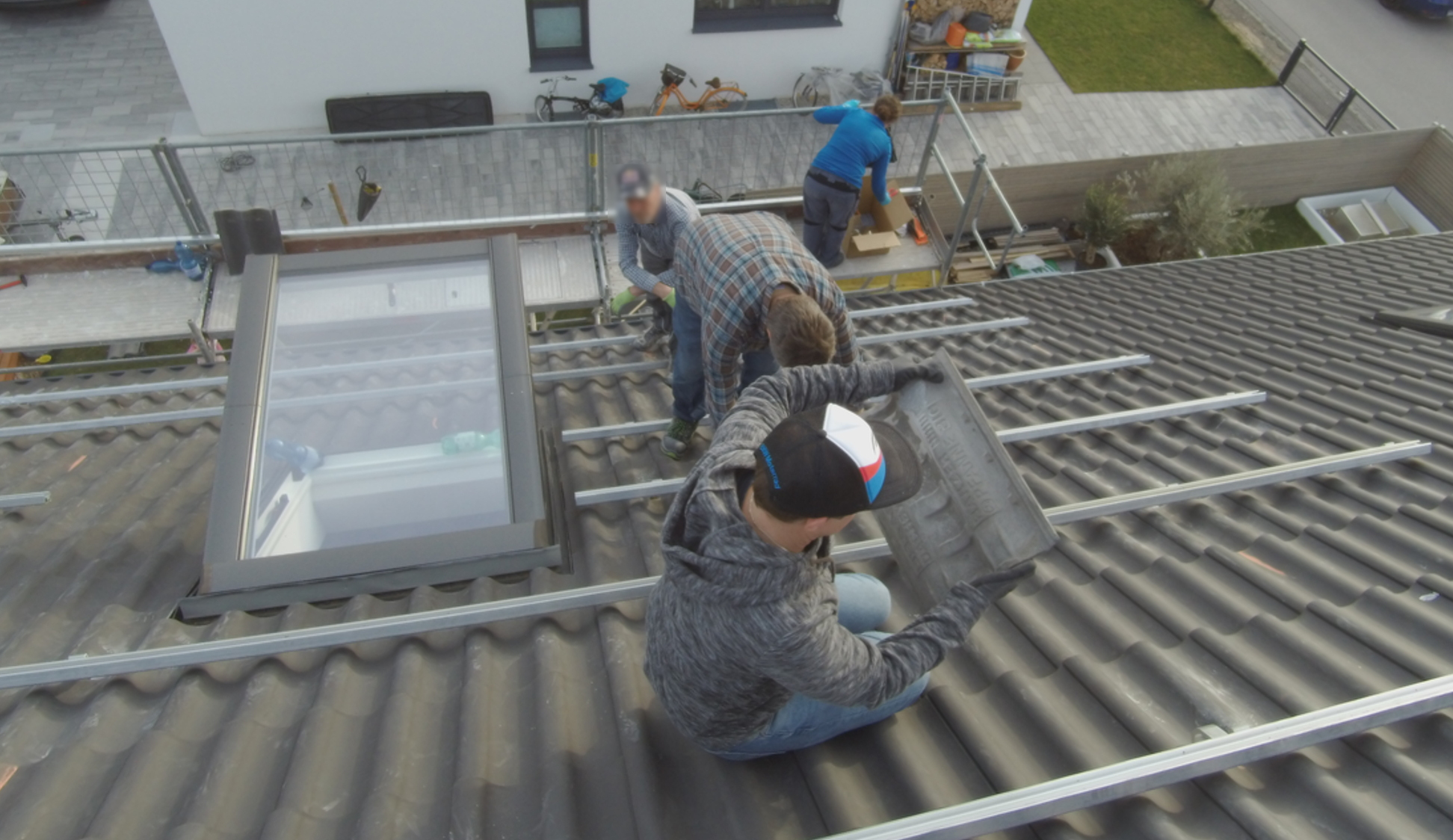

chain of people for moving tiles on and off the roof

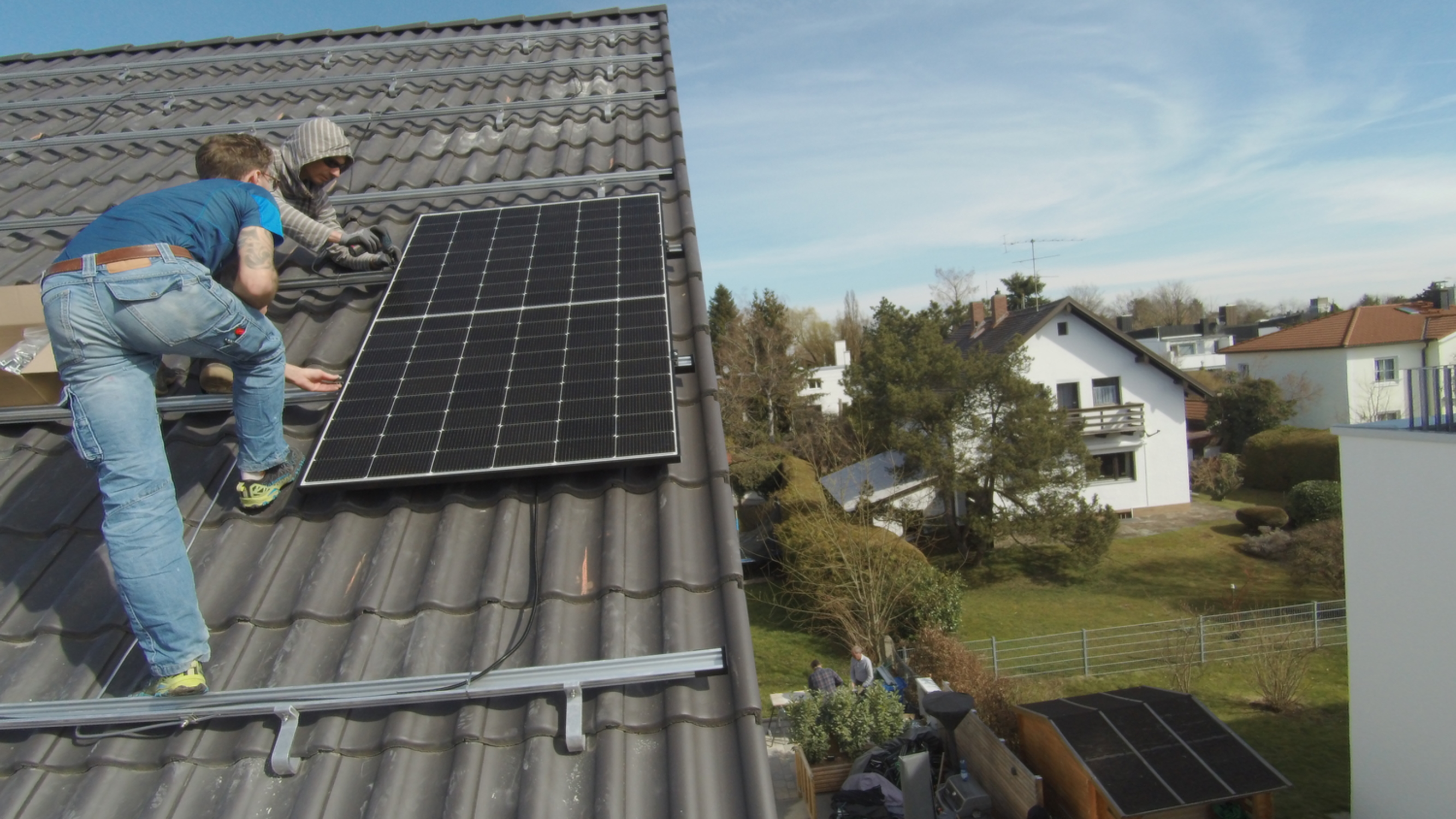

first module!
right side, modules installed up to the ridge

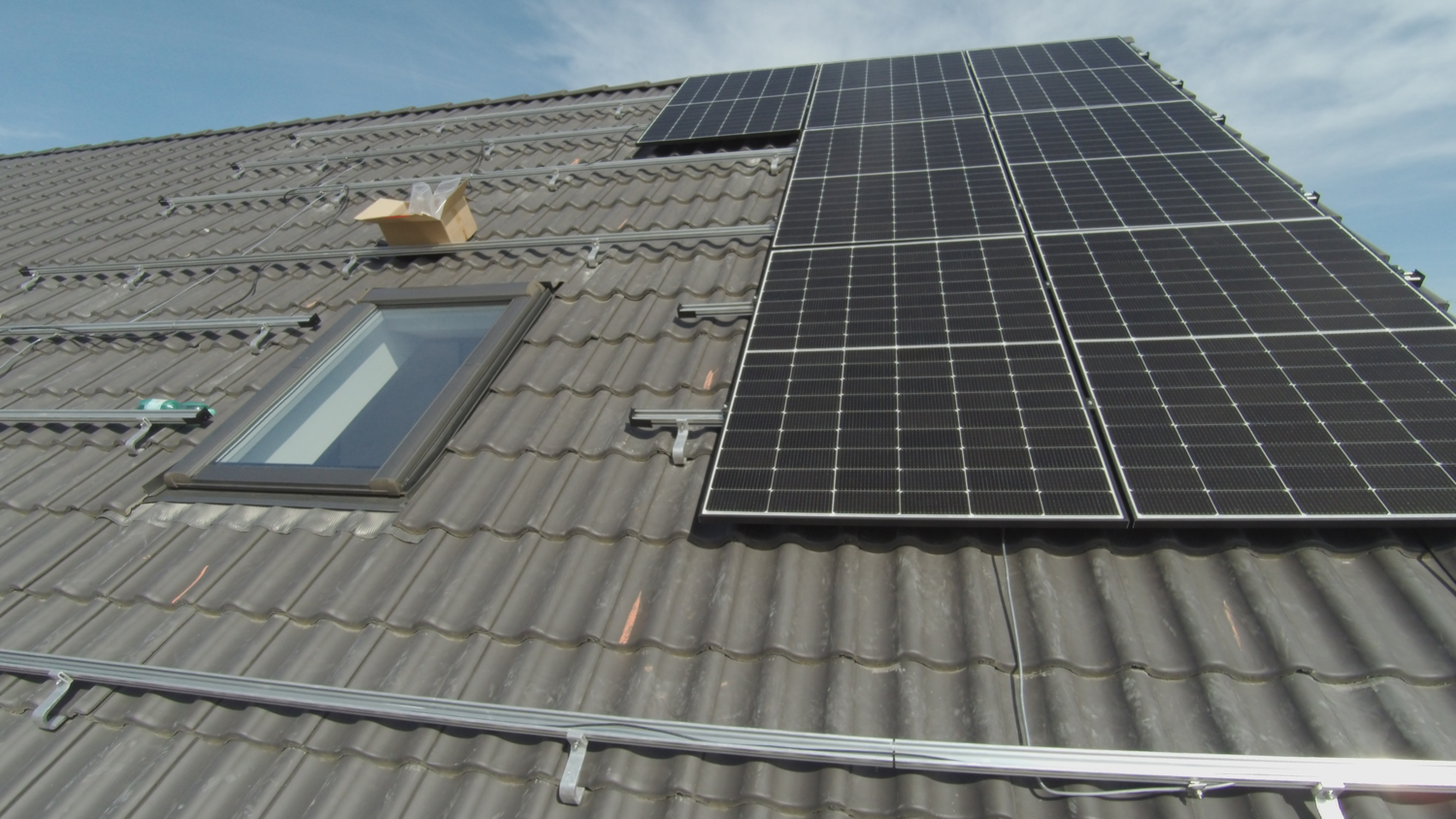

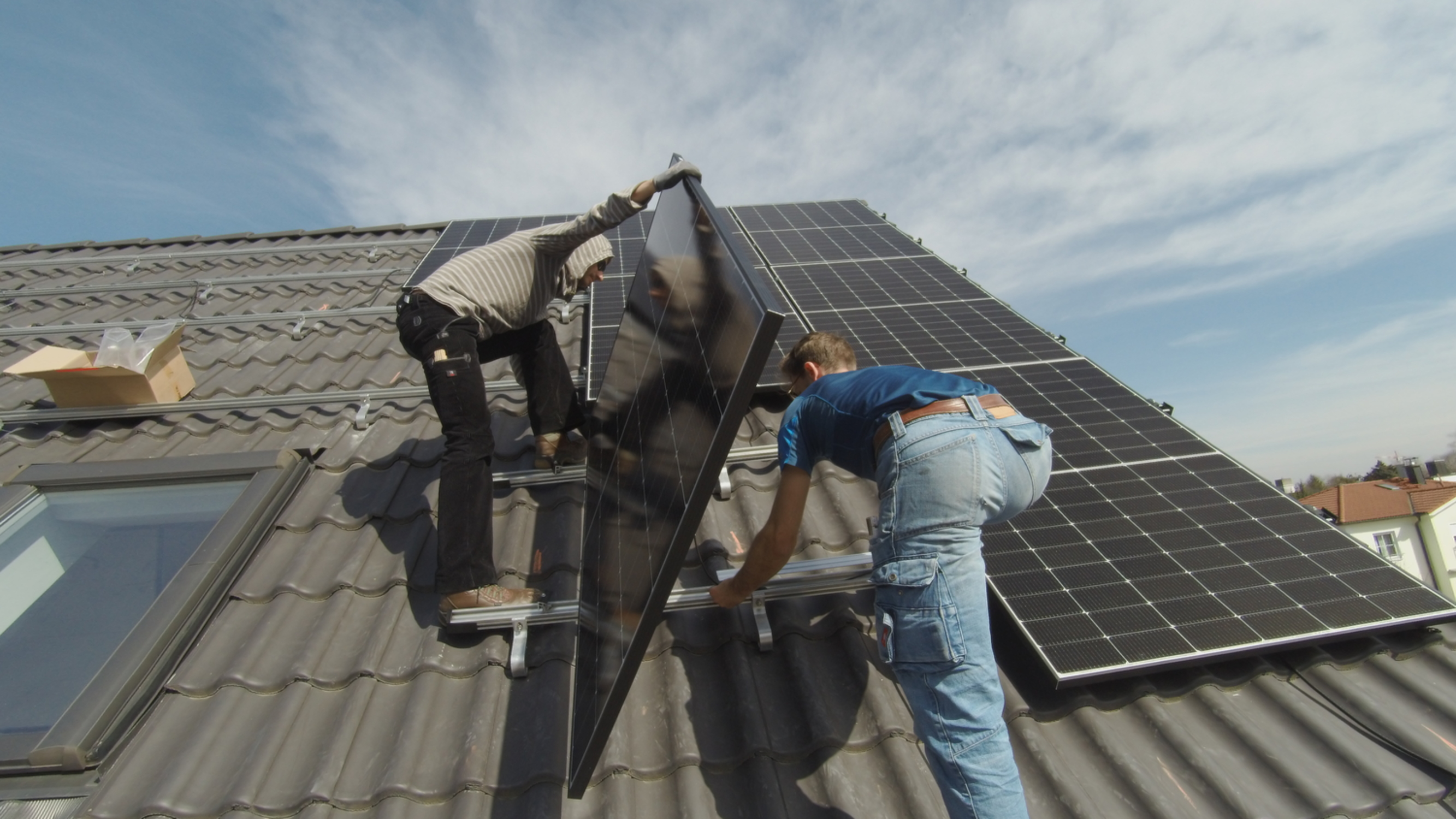

some more modules
...and more...

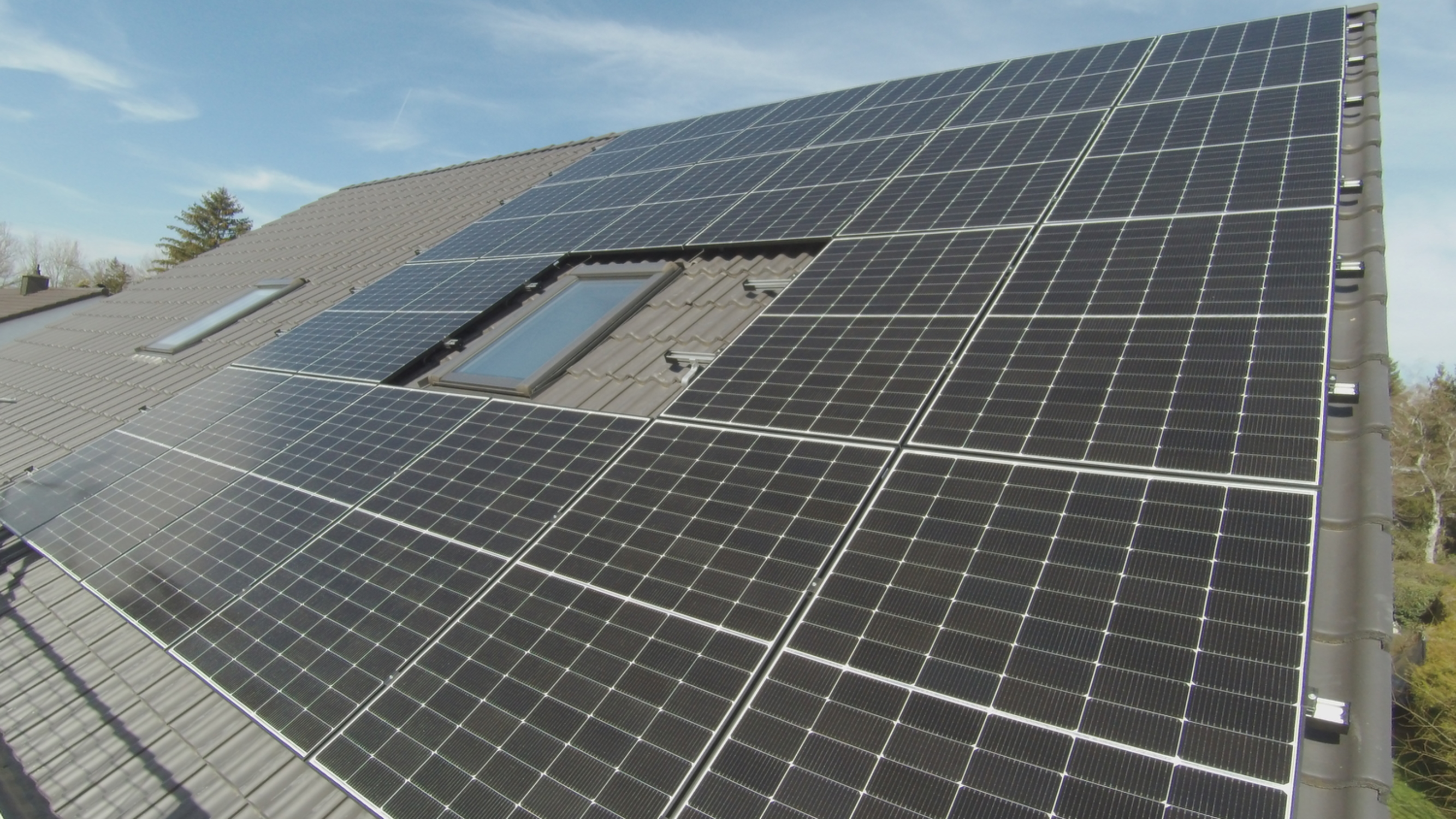

all done!

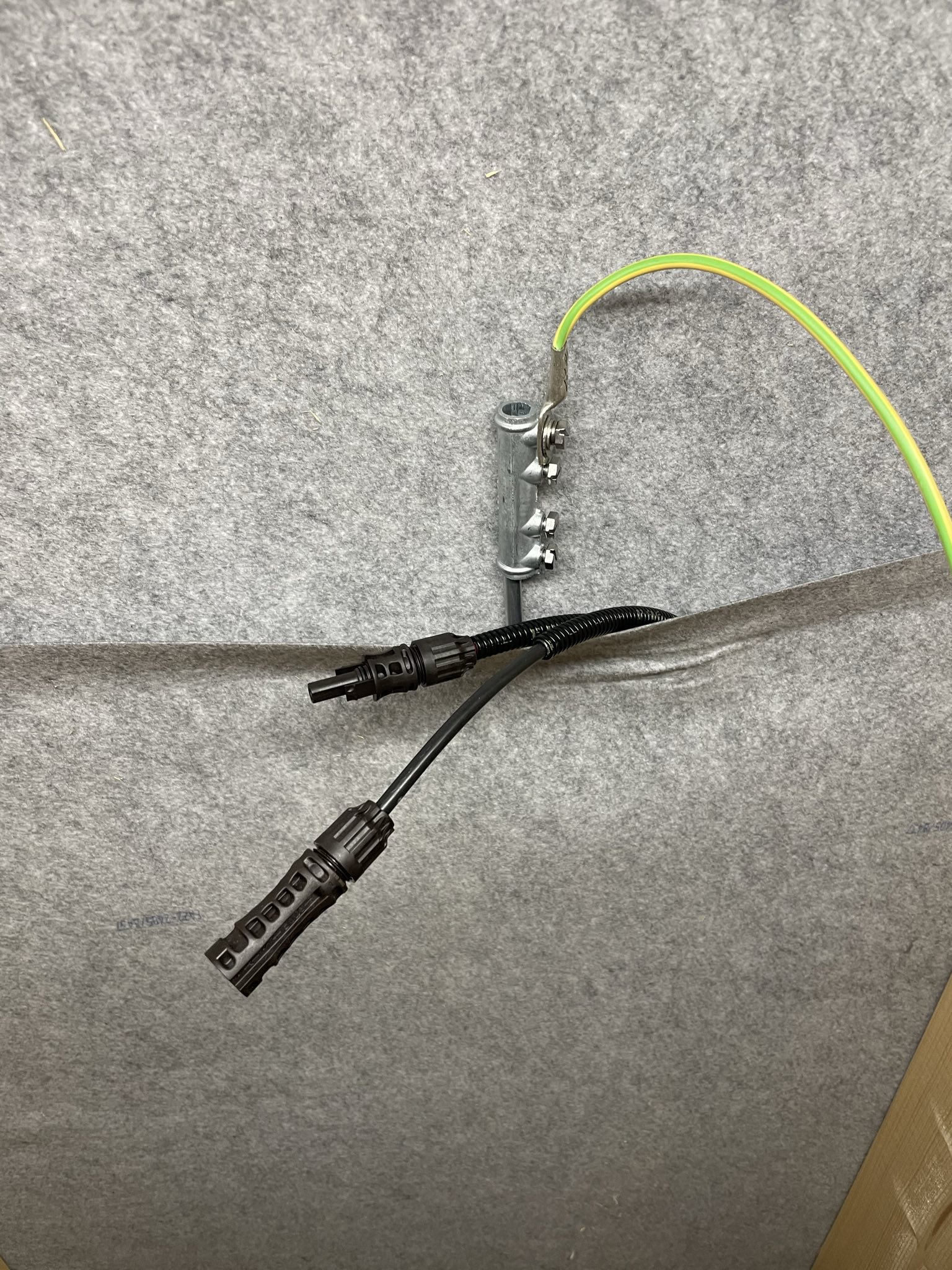

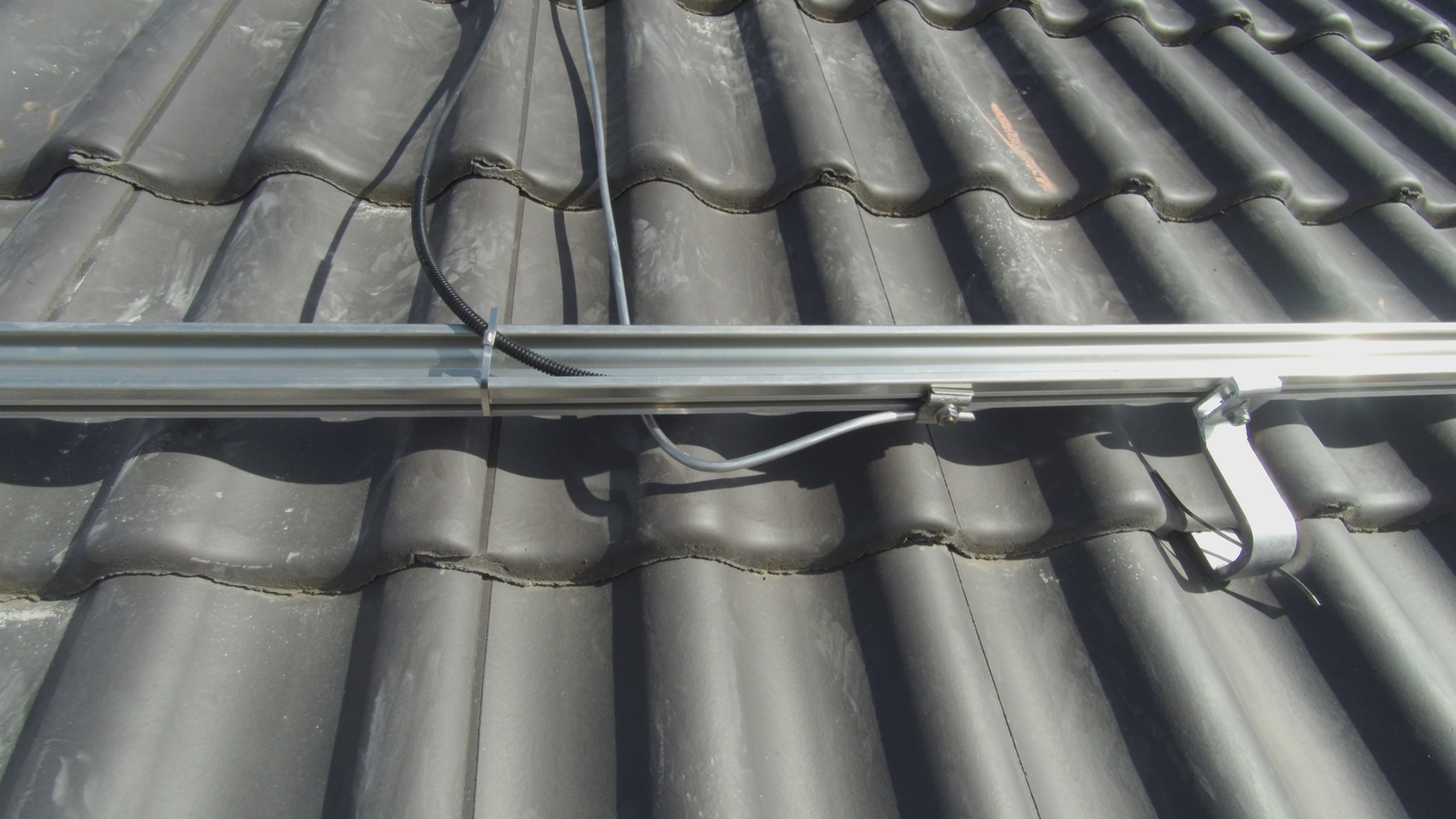

grounding of mounting system and string cable

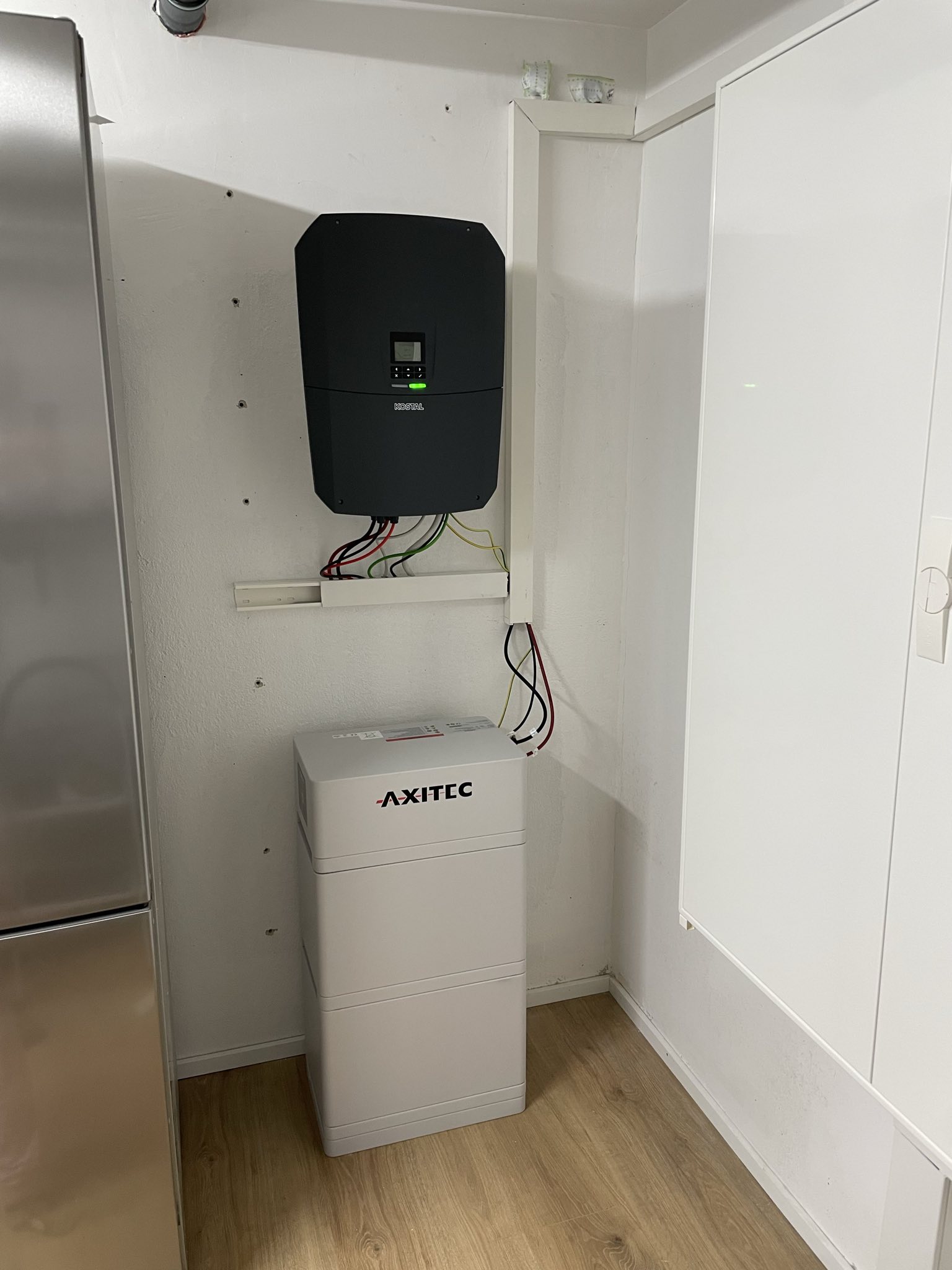

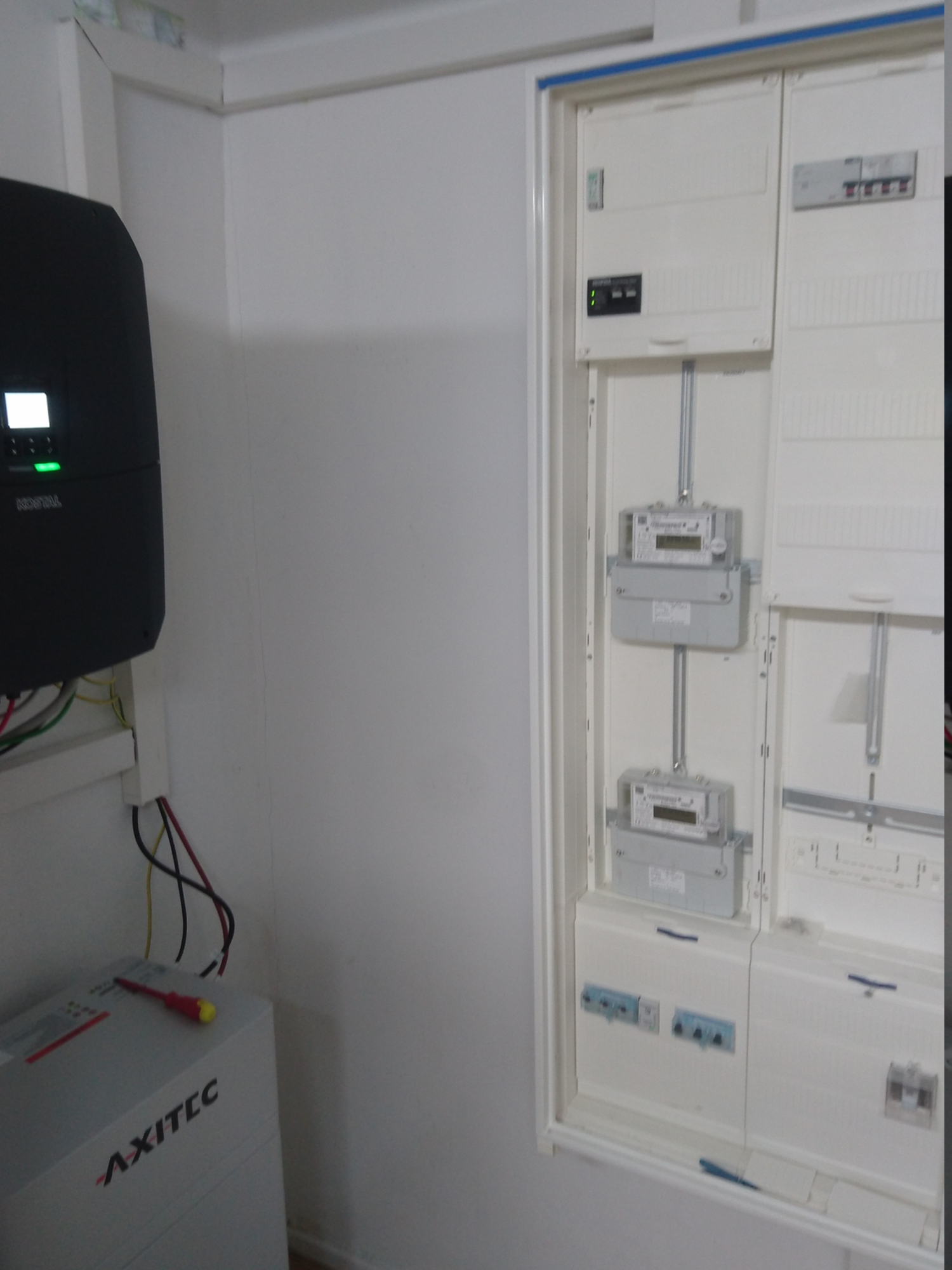

inverter and battery
...next to the electric cabinet with smart meter, fuses and RCD
